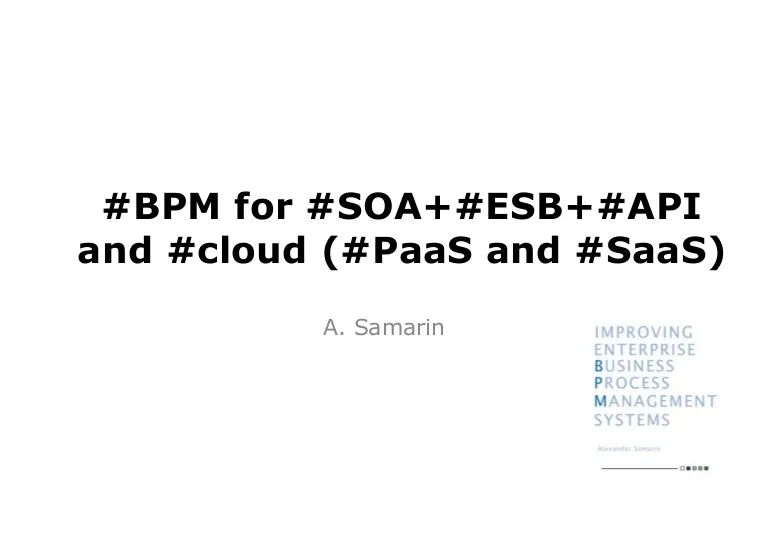

#BPM for #SOA+#ESB+#API
and #cloud (#PaaS and #SaaS)
A. Samarin
1. #bpm for developers: improve #agility of implementations
http://improving-bpm-systems.blogspot.com/2013/04/bpm-for-developers-
improve-agility-of.html
2. Addressing #security concerns through #BPM at
http://improving-bpm-systems.blogspot.com/2013/04/addressing-security-
concerns-through-bpm.html
3. https://www.linkedin.com/pulse/article/20140427193910-4749526-
ideas-for-bpmshift-delenda-est-vendor-centric-bpm-how-to-modernise-
a-legacy-erp
4. https://www.linkedin.com/pulse/article/20140812140157-4749526–
bpm-for-software-architects-from-monolith-applications-to-explicit-and-
executable-coordination-of-microservices-architecture
© A. Samarin 2014 #BPM for #SOA+#ESB+#API and #cloud (#PaaS and
#SaaS) v2
2
Related articles
flow of data flow of control mixed flow
Application In-house
Service
Legacy
application
No clouds,
everything is in-house
SaaS in Cloud
Service
flow of data flow of control mixed flow
Legacy
application
App
Internet
API
Cloud services
and external
client
Application In-house
SaaS in Cloud
API
flow of data flow of control mixed flow
API API
Service
Legacy
application
App
SOA+ESB+API
Container Container
Internet
Put order in-house
by
SOA+ESB+API
Application In-house
API API
Service
Legacy
application
App
SOA+ESB+API
Container Container
Internet
SaaS in Cloud
API
Application In-house
API
Container
Compound
service
flow of data flow of control mixed flow
Use compound
services to
simplify
applications
API API API
BPMS container Container Container
Service
Legacy
application
SOA+ESB+API
BPMS
management
as a service
API
BPMS container
Process
instance as
a service
API
BPMS container
Human
activity
as a
service
Internet
In-house Process-centric solution
(internal, B2E, B2B)
API
Container
Compound
service
App
Application
SaaS in Cloud
flow of data flow of control mixed flow
SaaS in Cloud
API
Adding process-centric
solutions
API API API API API
Service
Process
instance as a
compound
service
Legacy
application
App
BPMS
management
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container Container
Internet
Process-centric solution
(internal, B2C, B2B)
In-house API
Container
Compound
service
flow of data flow of control mixed flow
SaaS in Cloud
API
Replacing
compound
services by mini-processes
API API API API API
Service
Process
instance as a
compound
service
Legacy
application
App
BPMS
management
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container Container
Internet
Process-centric solution
(internal, B2C, B2B)
In-house API
SaaS in Cloud
flow of data flow of control mixed flow
More order in-house
PaaS in Cloud
Process-centric solution
(internal, B2C, B2B)
API API API API
BPMS
API API API API
BPMS container BPMS container Container Container
Service
Process
instance as a
compound
service
Legacy
application
App
SOA+ESB+API
BPMS
management
as a service
Internet
In-house
Process Service
instance as
management
a service
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container
API
SaaS in Cloud
flow of data flow of control mixed flow
Use BPM PaaS
product but keep
the flow of data
in-house
PaaS in Cloud
Process-centric solution
(internal, B2C, B2B)
API API API API
BPMS
API API API API
BPMS container BPMS container Container Container
Service
Process
instance as a
compound
service
Legacy
application
App
SOA+ESB+API
BPMS
management
as a service
Internet
In-house
Process Service
instance as
management
a service
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container
API
SaaS in Cloud
flow of data flow of control mixed flow
App
Redirect all
external
applications to
PaaS product
PaaS in Cloud
Process-centric solution
(internal, B2C, B2B)
API API API API
BPMS
API API API
BPMS container BPMS container Container
Process
instance as a
compound
service
Legacy
application
App
SOA+ESB+API
BPMS
management
as a service
Internet
In-house
Process Service
instance as
management
a service
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container
API
SaaS in Cloud
flow of data flow of control mixed flow
App
Moving more
services to PaaS
product
flow of data flow of control mixed flow
Legacy
Process-centric solution
(internal, B2C, B2B)
API API API API
application
SOA+ESB+API
API
Container
Internet
Legacy will be
SaaS in cloud at
one time
In-house
BPMS
Process Service
instance as
management
a service
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container
App
PaaS in Cloud
API
SaaS in Cloud
Nice and clean in-house
SaaS in Cloud
OTS
products
Internet
In-house
flow of data flow of control mixed flow
Process-centric solution
(internal, B2C, B2B)
API API API API
BPMS
Process Service
instance as
management
a service
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container
App
PaaS in Cloud
API
SaaS in Cloud
API
Some COTS
products become
also PaaS
products
SaaS in Cloud
OTS
products
Internet
In-house
flow of data flow of control mixed flow
Process-centric solution
(internal, B2C, B2B)
API API API API
BPMS
Process Service
instance as
management
a service
as a service
Human
activity
as a
service
SOA+ESB+API
BPMS container BPMS container BPMS container Container
App
PaaS in Cloud
API
SaaS in Cloud
API
API
API
Container
Container Another PaaS
Service
in Cloud
Service
Advantages of cloud (1)
• SaaS is good for OTS products (system of records)
– not be changed by us (i.e. customised)
– protect well their data
• BPM PaaS product is necessary for integration and
provisioning of micro-services (system of differentiation)
– without customising the platform (itself
– with the use of only non-exotic features
– core for a corporate integration and automation platform or
business execution platform
– quick deployment, versioning, scaling out (for peak load periods)
• Collaboration with a BPM PaaS product vendor to improve
our services and solutions (system of innovations)
© A. Samarin 2014 #BPM for #SOA+#ESB+#API and #cloud (#PaaS and 16
#SaaS) v2
• Several SaaS and PaaS products may be used
simultaneously
• But, keep an eye on them – changing of SaaS or PaaS
product should be easy
• Potentially, all currently installed in-house products will be
in cloud
• Financial effect should be estimated if there is “pay-as-you-
go” option
17
Advantages of cloud (2)
© A. Samarin 2014 #BPM for #SOA+#ESB+#API and #cloud (#PaaS and
#SaaS) v2
How to move from in-house to cloud
• Step-by-step
• Total (or ruthless) digitalisation
• Different business domains may have different pace
• Keep everyone happy concerning their “touch-points”
• Especially security issues
– making the flow of data explicit to take an informed solution
• Make everything explicit
• Maintain discipline, make design simple, strive for
balance, and keep is stable
• Architecture, architecture, architecture
© A. Samarin 2014 #BPM for #SOA+#ESB+#API and #cloud (#PaaS and 18
#SaaS) v2
Again
1. Think about micro-services (atomic and compound)
2. Know how to implement your-business-specific-common
functionality as micro-services
3. Know not to implement automation for your-unique-business-
processes-specific as composite (compound)
micro-services with the use of micro-services from the
item #2
4. Know how to implement your-unique-business-processes
as composite (compound) micro-services with the use of
the item #3
5. Use DSLs for compound micro-services
6. Use interpretive programming languages for micro-services
7. Think about integration and automation platform
© A. Samarin 2014 #BPM for #SOA+#ESB+#API and #cloud (#PaaS and 19
#SaaS) v2
Apps and services view – which initiated
• “A relevant application architecture trend is the shift away from monolithic
and tightly coupled n-tier applications to decomposed applications. A modern
application is a functional ecosystem comprising a loose association of apps
and services. Apps implement the application front end, and services
implement the application back end. Together these apps and services
support a particular business domain.”
© A. Samarin 2014 #BPM for #SOA+#ESB+#API and #cloud (#PaaS and
#SaaS) v2
20
this presentation
1. Business process-specific functionality (to be
used only in a particular process)
2. Business domain-specific functionality
(common within a particular domain and to be
used by services from the item 1)
3. Cross-domain functionality (to be used by
services from the item 2)
# compound vs atomic micro-service or service OTS vs in-house
1 explicit compound micro-service in-house
2 explicit compound or atomic any any
3 implicit compound or atomic any OTS
• QUESTIONS?
• Personal website: http://www.samarin.biz
• Blog http://improving-bpm-systems.blogspot.com
• LinkedIn: http://www.linkedin.com/in/alexandersamarin
• E-mail: alexandre.samarine@gmail.com
• Twitter: @samarin
• Mobile: +41 76 573 40 61
• Book: www.samarin.biz/book
Thanks
© A. Samarin 2014 21
