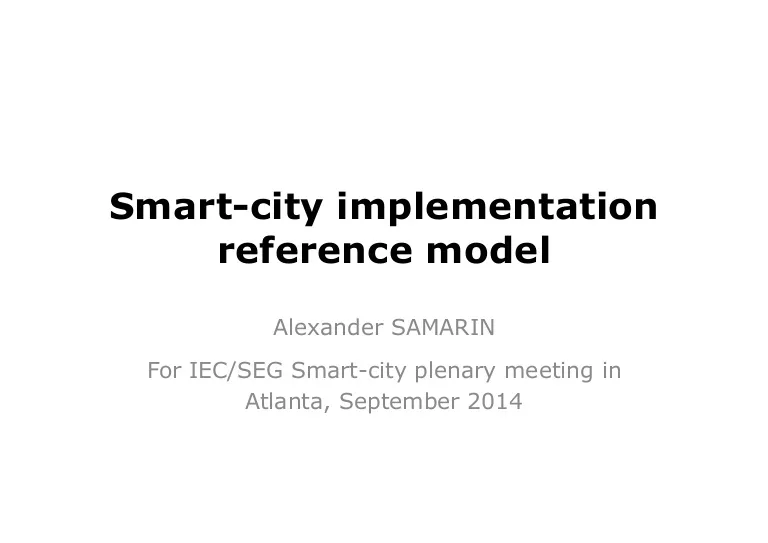

Smart-city implementation reference model

Transcript

Smart-city implementation
reference model
Alexander SAMARIN
For IEC/SEG Smart-city plenary meeting in
Atlanta, September 2014
About me
• A digital enterprise architect
– from a programmer to a systems architect
– creator of systems that work without me
– broad experience: company, canton, country, continent
• I believe that many improvements in operational
excellence and strategy execution are achievable
relatively easy
• HOW I do what I do
– architecting synergy between strategies, technologies, tools and
good practices for the client’s unique situation, and knowledge
transfer
• WHAT is the result of my work for clients
– less routine work, less stress, higher performance, higher security,
less risk, higher predictability of results, better operations, less
duplication and liberation of business potentials
© A. Samarin 2014 Smart-city implementation reference model v4 2
Agenda
• Context
• Smart-city implementation reference model
• Views
© A. Samarin 2014 Smart-city implementation reference model v4 3
Introduction
• Smart-city: a city architected to address public issues via
ICT-based solutions on the basis of a multi-stakeholder
municipally based partnership
• A smart-city is a socio-technical system of systems
• Relationships between social and technical elements
should lead to the emergence of productivity and
wellbeing
• System: a set of interacting interdependent components
forming an integrated whole
© A. Samarin 2014 Smart-city implementation reference model v4 4
Complexity of smart-city as a socio-technical
system of systems
• Almost unlimited life-cycle (unpredictable and incremental
evolution)
• Socio-technical system
• Collaborative system
• Industrialised system
• Ability for rapid innovation is important
• Variety of services (several hundred governmental
services are listed in the Swiss e-government catalogue)
• High level of security for personal data
© A. Samarin 2014 Smart-city implementation reference model v4 5
Agenda
• Context
• Smart-city implementation reference model
• Views
© A. Samarin 2014 Smart-city implementation reference model v4 6
WHY implementation reference model (1)
• All smart-cites deliver the same services, albeit in a
different manner
• Realisation of smart-city potentials would benefit from a
holistic approach
• BSI standard
PAS 181:2014
© A. Samarin 2014 Smart-city implementation reference model v4 7
WHY implementation reference model (2)
• Digital age – It is not about “just the website”, “online services”
or “transactions”
• Everything becomes digital: products, information, content,
documents, records, processes, money, rights,
communications – Digital eats physical
• If digital then intangible thus news tools and new execution
speed immediately – Fast eats slow
• Digital things are at new scale – Big eats small
• With this new speed and scale, there is no time for human
intervention and errors in routine operations and at interfaces
© A. Samarin 2014
Smart-city implementation reference model v4 8
WHY implementation reference model (3)
• There is a way to combine diversity and uniformity
• The problem of combining them is also known as “shared
services”
• Example – Business units (BUs) have different levels of
computerisation
– a standard solution from the IT department is not always good for
everyone
BU1 BU2 BU3
Standard
solution
Level of
computerisation
IT department
© A. Samarin 2014 Smart-city implementation reference model v4 9
WHY implementation reference model (4)
Level of
computerisation
© A. Samarin 2014
B C A B A B C
BU1 BU2 BU3
1) Standard
solution is based
on processes and
shared services
2) Each BU is
moving to a similar
architecture
IT department
Smart-city implementation reference model v4 10
WHY implementation reference model (5)
• Considers together all implementations and architects
the ability to reproduce results
– ready-to-use solutions, tools, patterns and architectures
– offers the best possible services for each citizen
– becomes the centre of societal transformation
– seamlessly incorporates innovations
– implementable at your pace
– secure by design
© A. Samarin 2014 Smart-city implementation reference model v4 11
HOW does this reference model work
• Applies the power of enterprise architecture
– platform-based implementation
– enterprise-as-a-system-of-processes
– microservices
– modernisation of legacy applications
• Forms a Common Urban Business Execution (CUBE)
platform
© A. Samarin 2014 Smart-city implementation reference model v4 12
EA explained (1)
• Architect: a person who translates a customer’s
requirements into a viable plan and guides others in its
execution
• Enterprise Architecture (EA): the process of translating
business vision and strategy into effective enterprise
change by creating, communicating and improving the
key requirements, principles and models that describe the
enterprise’s future state and enabling its evolution and
transformation
© A. Samarin 2014 Smart-city implementation reference model v4 13
EA explained (2)
• EA is the ideal “tool” to address the challenge of diversity
and uniformity because EA is a holistic coordinator of
people, processes and technologies in 4 dimensions:
– business domains span – organisational unit, segment,
enterprise, supply-chain, municipality, province, ministry, country,
region, continent, etc.
– architectural practices span – business, data, application,
security, information, technology, etc.
– time span – solution life-cycle, technology life-cycle, tool life-cycle,
project life-cycle, enterprise life-cycle, etc.
– sector span – detecting and re-using common patterns (good
business practices) in unique processes from different sectors
© A. Samarin 2014 Smart-city implementation reference model v4 14
EA views: projects, solutions,
© A. Samarin 2014
capabilities and platforms
Smart-city implementation reference model v4 15
© A. Samarin 2014
EA views: time span
Smart-city implementation reference model v4 16
EA views: business domains span vs
time span
© A. Samarin 2014 Smart-city implementation reference model v4 17
EA views: architectural practices span vs
business domains span
© A. Samarin 2014 Smart-city implementation reference model v4 18
EA: Many stakeholders (participants)
• Citizens
• Government authorities
• Funding bodies
• Local government stakeholders
• National regulatory agencies
• Political parties
• Public service providers
• Local businesses
• IT vendors
• Architects
• Project managers
• Local NGOs
• External NGOs
• Global businesses
© A. Samarin 2014 Smart-city implementation reference model v4 19
Matrix of stakeholders and views
The numbers “2.2” etc. are references to chapters in the concept paper
© A. Samarin 2014 Smart-city implementation reference model v4 20
WHAT reference model: many views (1)
• Reference functional architecture
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental-entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 21
WHAT reference model: many views (2)
• Common functional capabilities
• Enterprise as a system of processes
• Enhancing information security through the use of
processes
• Enterprise Risk Management reference model
• Records management as a BPM application
• Multi-layered implementation model
• Agile solution delivery practices
• Microservices
• Various technologies around the implementation model
• Modernisation of applications to become process-centric
• Moving services to clouds
© A. Samarin 2014 Smart-city implementation reference model v4 22
Agenda
• Context
• Smart-city implementation reference model
• Views
© A. Samarin 2014 Smart-city implementation reference model v4 23
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 24
Common functional capabilities (1)
• Smart-city common capabilities
– City-related registries: citizens, business, services
– Inter-participants secure data and information exchange
– Repository of community-important flows of events
– Repository of community-important business objects (during their
full life-cycle)
• Smart-city domains capabilities
– To be provided during the evolution of the platform
© A. Samarin 2014 Smart-city implementation reference model v4 25
Common functional capabilities (2)
• Good business practices
• Universal business capabilities
• Specialised enterprise capabilities
• Basic technical capabilities (or technologies)
© A. Samarin 2014 Smart-city implementation reference model v4 26
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 27
Four communication patterns for
exchanges between a partner and the
government
Partners (citizen, business, and other organisations)
Government
2. Patrner-declaration
1. Government-announce
4. Partner-demand
Spread
in time
3. Government-demand
Spread
in time
1. Government-announcement, e.g. broadcasting changes in a law
2. Partner-declaration, e.g. communicating a change of the partner’s address
3. Government-demand, e.g. inviting to pay taxes
4. Partner-demand, e.g. requesting a certificate (fishing license)
© A. Samarin 2014 Smart-city implementation reference model v4 28
A partner-initiated-demand may
required several exchanges between the
partner and the government
Government
Time
© A. Samarin 2014 Smart-city implementation reference model v4 29
The partner may need to deal with some
ministries
Government
Ministry A Ministry B Ministry C
Methodologies:
+ data modelling
+ electronic document
exchange
Time
Tools:
+ standard data schemas
+ electronic signature
• data flow (black
dashed lines)
© A. Samarin 2014 Smart-city implementation reference model v4 30
E-gov coordinates partner’s interactions
Methodologies:
• data modelling
• electronic document
Process
with the government
+ + + +
Government
• control flow (black solid
lines)
• data flow (black dashed
lines)
Ministry A Ministry B Ministry C
Time
(ED) exchange
+ BPM discipline
+ process modelling
Technologies:
• standard data schemas
• electronic signature
+ BPM suite
© A. Samarin 2014 Smart-city implementation reference model v4 31
E-gov unifies the communication
between the partner and the ministries
Methodologies:
• data modelling
• electronic document
(ED) exchange
+ BPM discipline
+ process modelling
… …
Process —
Government
2b
Ministry B
Time
2a x 2c
• control flow (black solid
lines)
• data flow (black dashed
lines)
Technologies:
• standard data schemas
• electronic signature
+ BPM suite
© A. Samarin 2014 Smart-city implementation reference model v4 32
E-gov provides a social collaborative
Methodologies:
• data modelling
• ED exchange
• BPM discipline
• process modelling
+ ED management
+ records management
+ collaboration
+ social
Process
extranet for partners
+ + + +
Government
Ministry A Ministry B Ministry C
Time
Technologies:
• standard data schemas
• electronic signature
• BPM suite
+ ECM
Social collaborative extranet
• control flow (black solid
lines)
• data flow (black dashed
lines)
© A. Samarin 2014 Smart-city implementation reference model v4 33
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 34
Partner’s view
© A. Samarin 2014 Smart-city implementation reference model v4 35
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 36
E-gov application architecture view
Partners
Social collaborative extranet
e-gov
service
e-gov
service
e-gov
service
Coordination and integration backbone
Existing
application
e-Government
Existing
application
Existing
application
Government
Technologies:
• BPM suite
• SOA orientation
• ECM
© A. Samarin 2014 37
Smart-city implementation reference model v4
E-gov traditional application architecture
Partners
Application
Existing
application
Portal
Application
Existing
application
Application
Existing
application
Government
© A. Samarin 2014 38
Smart-city implementation reference model v4
E-gov introductory application
architecture
Partners
Social collaborative extranet
e-gov
service
e-gov
service
e-gov
service
Coordination and integration backbone
Existing
application
e-Government
Existing
application
Existing
application
Government
© A. Samarin 2014 39
Smart-city implementation reference model v4
E-gov transitional application
architecture
Partners
Social collaborative extranet
e-gov
service
e-gov
service
e-gov
service
Coordination and integration backbone
Existing
application
e-Government
Existing
application
Coordination backbone
Existing
application
Service Service
Government
© A. Samarin 2014 40
Smart-city implementation reference model v4
E-gov target application architecture
Partners
Social collaborative extranet
e-Government
e-gov
service
e-gov
service
e-gov
service
Coordination and integration backbone
Service Service Service
© A. Samarin 2014 41
Smart-city implementation reference model v4
E-social system application architecture
Partners
Social collaborative extranet
E-social system
Public
service
Social
service
Coordination and integration backbone
Private
service
Professional
service
Voluntary
service
© A. Samarin 2014 42
Smart-city implementation reference model v4
Steps of evolution in application
architecture
Introductory
architecture
Target
architecture
E-Social system
architecture
Portal-centric
architecture
Transitional
architecture
© A. Samarin 2014 Smart-city implementation reference model v4 43
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 44
Integration process instead of
N-to-N connectivity
Nx(N-1)/2 complexity N complexity
© A. Samarin 2014 Smart-city implementation reference model v4 45
Use of many security envelopes
• Business (processing) envelope
• Delivery (addressing) envelope
• Transportation (routing) envelope
© A. Samarin 2014 Smart-city implementation reference model v4 46
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 47
Platform-based architecture (1)
• Business concern: How to deliver many similar
applications for various highly-diverse clients; define
everything up-front is not possible (typical BPM or ECM
project)
• Logic
– Developing individual applications will bring a lot of duplications
– The provisioning of solutions should be carried out incrementally
with the pace of the target client
– Consider a platform
1. must standardise and simplify core elements of future
enterprise-wide system
2. for any elements outside the platform, new opportunities
should be explored using agile principles
© A. Samarin 2014 Smart-city implementation reference model v4 48
Platform-based architecture (2)
• Principles
– The platform frees up resource to focus on new opportunities
– Successful agile innovations are rapidly scaled up when
incorporated into the platform
– An agile approach requires coordination at a system level
– To minimise duplication of effort in solving the same problems,
there needs to be system-wide transparency of agile initiatives
– Existing elements of the platform also need periodic challenge
Delivery by applications Delivery by solutions
A2
A1
A3
S2
S …
1
Platform
S3
Functionality
Scope
© A. Samarin 2014 Smart-city implementation reference model v4 49
Overall platform governance
• There are two primary types of activity.
– On-going and centralised platform evolution
– Rapid implementation of solutions as mini-projects
• Platform evolution is carried out by an inter-organisational-
units coordination committee
© A. Samarin 2014 Smart-city implementation reference model v4 50
Advantages of the corporate
ECM platform
D
E
V
E
L
O
P
M
E
N
T
Functionality
Process-centric
integration
Company-specific
features
Advanced features of a
common ECM platform
Basic features of a
common ECM platform
Generic web- environment 3
development platforms
Dev env 1 Dev env 2
Development
© A. Samarin 2014 Smart-city implementation reference model v4 51
Financial estimations
• Current development cost & time for a collaborative
application
– Cost: 40 – 200 K $
– Time: 0,5 – 2 years
• Corporate platform program cost & time
– Cost: 600 K $
– Time: 1 year
$$
• Expected development cost & time for
a collaborative application within
the corporate platform
– Cost: 20 – 60 K $
– Time: 1 – 3 months
N apps.
N≈8
Without
common
platform
With
common
platform
© A. Samarin 2014 Smart-city implementation reference model v4 52
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 53
Ladder of maturity meta-pattern
• Entities are permitted to advance at different paces in
their ascent to the top of the “ladder”.
© A. Samarin 2014 Smart-city implementation reference model v4 54
Component-oriented design
• The platform is designed to be tools-independent by
standardizing data, information, interfaces and
coordination between various capabilities.
© A. Samarin 2014 Smart-city implementation reference model v4 55
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 56
Architecture-based agile project
management
• It combines decomposition with agile implementation of
“architected” components
© A. Samarin 2014 Smart-city implementation reference model v4 57
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 58
Structural dependencies between
various artefacts
© A. Samarin 2014 Smart-city implementation reference model v4 59
Dynamic relationships between various
Business
initiatives
(business-specific
demand)
Manage
business by
processes
Business
capabilities
(business-generic
demand)
Manage
processes BPM suite
IT
capabilities
(IT-generic
supply)
Roadmap
programmes
(from AS-IS
to TO-BE)
Business demand IT supply
Business
strategic
objectives
Governance
1
2
3
2
2->5
2->4
1->3
1->4
2->5
2->4
1->3
2->4
3->4
5
4
3
4
Business priority Requested maturity Maturity improvement
1
2
3
4
4
1
1
2
3
2
2
4
4
5
3
IT tools
(IT-specific
supply)
3->5
3->4
1->4
3->4
2->4
3
Programme priority
5
4
3
4
4
artefacts
© A. Samarin 2014 Smart-city implementation reference model v4 60
Implications and example
• Implications
– A formal way to discover points of the most leverage
– The decision-making process is explicit and transparent
– A strategy adjustment and validation becomes a routine on-going
activity during its implementation (like functioning of the GPS
navigator)
© A. Samarin 2014 Smart-city implementation reference model v4 61
VIEWS (1)
• Common functional capabilities
• Partner and smart-city-entity interaction view
• Partner view
• Evolution of implementation view
• The governmental entities integration view
• Paperless or digital work view
• Platform-based implementation view
– Platform-based approach
– Platform-based implementation practices
– Project management practices
– Implementation governance view
– Architecture-based procurement view
© A. Samarin 2014 Smart-city implementation reference model v4 62
Architecture-based procurement
• Separation of duties
• Architecture group: selection of IT
• Procurement group: acquisition of such IT components
(licensees, installation, training, documentation,
operations, etc.)
• Of course, the architecture group must make the selection
logic as explicit as possible.
© A. Samarin 2014 Smart-city implementation reference model v4 63
VIEWS (2)
• Common functional capabilities
• Enterprise as a system of processes
• Enhancing information security by the use of processes
• Enterprise Risk Management reference model
• Records management as an BPM application
• Multi-layered implementation model
• Agile solution delivery practices
• Microservices
• Various technologies around the implementation model
• Modernisation of applications to become process-centric
• Moving services to clouds
© A. Samarin 2014 Smart-city implementation reference model v4 64
Enterprise as a system of processes
• In the context of enterprise functioning, business
activities must be coordinated
• Coordination maybe strong (e.g. as in the army) or
weak (e.g. as in an amateurs football team)
• Coordination maybe implicit or explicit
• Coordination maybe declarative (laws) and imperative
(orders)
• Based on coordination, let us think about “levels of
cohesion”
1. process patterns (coordination within processes)
2. processes
3. cluster of processes (coordination between processes)
4. system of processes (coordination between clusters of processes)
© A. Samarin 2014 Smart-city implementation reference model v4 65
Process fragments – patterns
Click for animation
• Business case: typical “claim processing” process – claim,
repair, control, invoicing, and assurance to pay
SI
PAR
SI
IPS
© A. Samarin 2014 Smart-city implementation reference model v4 66
SI animated diagram
Click for
animation
© A. Samarin 2014 Smart-city implementation reference model v4 67
Coordination between processes (1)
• Simple event-based (which looks like a state machine)
© A. Samarin 2014 Smart-city implementation reference model v4 68
Coordination between processes (2)
1. state-machine
2. synchronous invocation
3. asynchronous invocation
4. fire and forget
5. parallel processes
6. co-processes (pattern SI)
© A. Samarin 2014 Smart-city implementation reference model v4 69
CLuster Of Processes (CLOP)
• CLOPs are usually formed with functional processes
which are implemented a particular business function,
e.g. Field Services
• And a “halo” of extra processes
1. monitoring
2. operating
3. governance
© A. Samarin 2014 Smart-city implementation reference model v4 70
Enabler group, supporting group and
customer group of clusters
© A. Samarin 2014 Smart-city implementation reference model v4 71
Implicit coordination between CLOPs (1)
© A. Samarin 2014 Smart-city implementation reference model v4 72
Implicit coordination between CLOPs (2)
© A. Samarin 2014 Smart-city implementation reference model v4 73
Implicit coordination between CLOPs (3)
© A. Samarin 2014 Smart-city implementation reference model v4 74
Make coordination between CLOPs
explicit (1)
• Business Object (BO) lify-cycle as a process
© A. Samarin 2014 Smart-city implementation reference model v4 75
Make coordination between CLOPs
explicit (2)
• Add enterprise-wide event dispatcher
© A. Samarin 2014 Smart-city implementation reference model v4 76
Make coordination between CLOPs
explicit (3)
© A. Samarin 2014 Smart-city implementation reference model v4 77
Functional view at a system of processes (1)
© A. Samarin 2014 Smart-city implementation reference model v4 78
Functional view at a system of processes (2)
© A. Samarin 2014 Smart-city implementation reference model v4 79
Functional view at a system of processes (3)
© A. Samarin 2014 Smart-city implementation reference model v4 80
VIEWS (2)
• Common functional capabilities
• Enterprise as a system of processes
• Enhancing information security by the use of processes
• Enterprise Risk Management reference model
• Records management as an BPM application
• Multi-layered implementation model
• Agile solution delivery practices
• Microservices
• Various technologies around the implementation model
• Modernisation of applications to become process-centric
• Moving services to clouds
© A. Samarin 2014 Smart-city implementation reference model v4 81
Dynamic provision of the access
© A. Samarin 2014 Smart-city implementation reference model v4 82
Extra relationships between activities
© A. Samarin 2014
Mandatory: different actors because of
the separation of duties
Potentially: different actors because of performance
impact – avoid assigning mechanical (low-qualified “red”)
activities and added-value (“green”) activities to the same actors
Smart-city implementation reference model v4 83
Extra relationships between activities
• There are security-related relationships between activities
• Example
– “Activitiy_B” relates to Activity_A as “Validating the work”
– These activities may be in different processes
– No actors must be assigned to both “Role_1” and “Role_2”
© A. Samarin 2014
(3)
Activity_A
Carry out the work
Activity_B
Carry out the work
Validating the
work
Role_1
Role_2
Smart-city implementation reference model v4 84
BPM and information security:
Extra relationships between activities
• Doing the work
– To which ROLES the work can be delegated
– To which ROLES the work can be send for review
• Assuring the work
– other ACTIVITIES to audit (1st, 2nd and 3rd party auditing)
– other ACTIVITIES to evaluate the risk (before the work is
started)
– other ACTIVITIES to evaluate the risk (after the work is
completed)
• Validating the work
– Other ACTIVITIES to check the output (errors and fraud
prevention)
• Some ACTIVITIES must be carried out by the same actor,
some ACTIVITIES must not
© A. Samarin 2014
(4)
Smart-city implementation reference model v4 85
Process-enhanced security for electronic
medical records
© A. Samarin 2014 Smart-city implementation reference model v4 86
VIEWS (2)
• Common functional capabilities
• Enterprise as a system of processes
• Enhancing information security by the use of processes
• Enterprise Risk Management reference model
• Records management as an BPM application
• Multi-layered implementation model
• Agile solution delivery practices
• Microservices
• Various technologies around the implementation model
• Modernisation of applications to become process-centric
• Moving services to clouds
© A. Samarin 2014 Smart-city implementation reference model v4 87
Embed risk management into functional
• Normal activities are enriched by “check-points”
© A. Samarin 2014
processes
Smart-city implementation reference model v4 88
© A. Samarin 2014
ERM reference model
Smart-city implementation reference model v4 89
VIEWS (2)
• Common functional capabilities
• Enterprise as a system of processes
• Enhancing information security by the use of processes
• Enterprise Risk Management reference model
• Records management as an BPM application
• Multi-layered implementation model
• Agile solution delivery practices
• Microservices
• Various technologies around the implementation model
• Modernisation of applications to become process-centric
• Moving services to clouds
© A. Samarin 2014 Smart-city implementation reference model v4 90
Typical problems with legacy software
• Symptoms of becoming legacy
– ad-hoc integration
– difficult incorporation of new technologies
– old programming techniques
– expensive maintenance
– heavy releases and upgrades
– availability of industrial products for previously unique
functionality (e.g. event management)
– some functionality is a commodity right now (e.g. BPM and BRM)
– just slow to evolve
• What is the root cause?
– Emergent/historical grow and not architected evolution
© A. Samarin 2014 Smart-city implementation reference model v4 91
The goal of modernisation
• Implement end-to-end processes with the maximum
reuse of existing IT applications and infrastructure
• Agile (with the pace of business) provisioning of business
solutions
• From disparate IT applications to a coherent business
execution platform which will “liberate” people for
business innovations
• Business evolution to drive technical transformation
• BUT Application as a unit of deployment is too big
© A. Samarin 2014 Smart-city implementation reference model v4 92
How to carry out the modernisation
• Step-by-step technical transformation by:
1. Disassemble into services
2. Add, if necessary, more services
3. Assemble via processes
• Combine various tactics: assemble, rent, buy, build,
outsource, standardised, re-engineered
• Incremental improvements and refactoring within a well-defined
big picture
• Intermix business evolution and technical transformation
• Keep the users happy and feel secure
© A. Samarin 2014 Smart-city implementation reference model v4 93
Monolithic applications are decomposed into
interconnected services
Monolith
application
GUI GUI screen 1 1 GUI GUI screen 2 2 GUI GUI screen 3
3
Business Business logic
logic
BO1 BO1 persistence persistence BO2 BO2 persistence
persistence
Business
logic service
Interactive
service 1
Interactive
service 2
Interactive
service 3
Coordination
BO1
persistence service
BO2
persistence service
Assembled
solution
© A. Samarin 2014 Smart-city implementation reference model v4 94
How to coordinate?
• Only the flow of data is traceable
• Flow of control is explicit, because
the primary importance is the result of
working together, but not individual
exchanges
(think about football)
© A. Samarin 2014 Smart-city implementation reference model v4 95
Several coordination techniques may be
used together
• By processes
• By events (EPN)
• By rules, work-load, etc.
© A. Samarin 2014 Smart-city implementation reference model v4 96
Transformation from typical inter-application
data flows to end-to-end
coordination of services
© A. Samarin 2014 Smart-city implementation reference model v4 97
Using events
• To externalise the flow of control from existing monolith
applications
© A. Samarin 2014 Smart-city implementation reference model v4 98
Co-existence of a legacy application and
a process solution
• The danger of “DOUble Master” (DOUM) anti-pattern –
particular data (actually a business object) are modified
via application or process but not either
• Few techniques
– lock-down the data manipulation interface in the application (a
screen) and provide a similar functionality in the process
– dynamic provisioning of the access to a screen for a staff member
who is carrying out a related activity (see next slide)
– decomposition of a screen into separate functions, e.g. Create
(out-of-process), Update (within-process) and Delete (separate-process)
– combination of previous ones
© A. Samarin 2014 Smart-city implementation reference model v4 99
Process-centric solutions
Assemble via processes (1)
• Business processes make bigger services from smaller
services
• The relationship between services and processes is
“recursive”
– All processes are services
– Some operations of a service can
be implemented as a process
– A process includes services
in its implementation
© A. Samarin 2014 Smart-city implementation reference model v4 100
Process-centric solutions
Assemble via processes (2)
• Who (roles) is doing What (business objects), When
(coordination of activities), Why (business rules), How
(business activities) and with Which Results (performance
indicators)
• Make these relationships explicit and executable
What you model is
what you execute
“The map is the app”
© A. Samarin 2014 Smart-city implementation reference model v4 101
Process-centric solutions
Multi-layer implementation model (1)
© A. Samarin 2014 Smart-city implementation reference model v4 102
Process-centric solutions
Multi-layer implementation model (2)
B C
A
A – SharePoint
B – in-house
development
C – SAP ECC6
© A. Samarin 2014 Smart-city implementation reference model v4 103
Process-centric solutions
Multi-layer implementation model (3)
SAP BW/BI, etc.
NetWeaver PI,
SolMan, etc.
NetWeaver
BPM, etc.
NetWeaver BRM,
Java, ECC6, etc.
XSD, Java, .Net
SQL Server,
Oracle, etc.
© A. Samarin 2014 Smart-city implementation reference model v4 104
Multi-layer implementation model and
other technologies
© A. Samarin 2014 Smart-city implementation reference model v4 105
VIEWS (2)
• Common functional capabilities
• Enterprise as a system of processes
• Enhancing information security by the use of processes
• Enterprise Risk Management reference model
• Records management as an BPM application
• Multi-layered implementation model
• Agile solution delivery practices
• Microservices
• Various technologies around the implementation model
• Modernisation of applications to become process-centric
• Moving services to clouds
© A. Samarin 2014 Smart-city implementation reference model v4 106
Different deployment ZONEs
© A. Samarin 2014
HQ
VIOLET ZONE – outside
enterprise and service-provider-
managed public
cloud
GREEN
ZONE –
outside
enterprise
and
enterprise-managed
private
cloud
YELLOW
GOLD
GOLD ZONE – classic
within enterprise
computing
YELLOW ZONE – within
enterprise private
cloud
BLUE ZONE –
outside
enterprise and
service-provider-managed
private
cloud
Smart-city implementation reference model v4 107
© A. Samarin 2014
Profiling services – example
Smart-city implementation reference model v4 108
© A. Samarin 2014
Decision taking – example
Smart-city implementation reference model v4 109
Conclusion
• Let us use the power of modern technologies to enable
and drive societal transformation of our cities
© A. Samarin 2014 Smart-city implementation reference model v4 110
• QUESTIONS?
Thanks
• EKSALANSI website: http://www.eksalansi.org
• Blog http://improving-bpm-systems.blogspot.com
• LinkedIn: http://www.linkedin.com/in/alexandersamarin
• E-mail: alex@eksalansi.org
• Twitter: @samarin
• Mobile: +41 76 573 40 61
• Book: www.samarin.biz/book
Smart-city implementation reference model v4 111
© A. Samarin 2014
