Editor’s Note

Everyone I know uses Excel to some extent, but few (including me!) even scratch the surface of its capabilities. In this article, written by Ellen Su, Finance Expert at Toptal, the capabilities of Excel’s PowerPivor addin are demonstrated to provide a number of time saving analysis techniques.

Ellen is a fixed-income trader and portfolio manager who now freelances in financial modeling. She is excited to bring to Toptal clients a vast set of tools to employ on analytical projects. Her unique talent is a seamless combination of data sourcing, programming, financial analysis, storyboarding, and visualization.


Every financial analyst is a whiz with Excel. However, as storage becomes cheaper, our organizations are accumulating more data. And ever-more data makes it harder to work with Excel—we either reach the 1,048,576 row hard limit, or the document slows to a crawl trying to process everything.

Often, the decision is whether to lose some of the carefully curated details, or to work in a tediously slow workbook. Sometimes, we have to get creative in order to combine two large datasets. We resort to using convoluted formulas and waiting forever for the calculations to be resolved.

Fortunately, you no longer have to make these decisions. Excel’s Power Pivot functionality provides a way to extract, combine, and analyze large datasets. Despite the fact that it was released with Excel 2010, most financial analysts I meet still do not know how to use Power Pivot, and many do not know it even exists.

In this article, I will show you how to use Power Pivot to overcome common Excel issues, and take a look at additional key advantages of the software using some examples. This Power Pivot for Excel tutorial is meant to serve as a guide to what you can achieve with this tool, and at the end, I will explore some sample use cases where Power Pivot could prove invaluable.

What Is Power Pivot and Why Is It Useful?

Power Pivot is a feature of Microsoft Excel that was introduced as an add-in to Excel 2010 and 2013, and is now a native feature for Excel 2016. As Microsoft explains, Power Pivot for Excel “enables you to import millions of rows of data from multiple data sources into a single Excel workbook, create relationships between heterogeneous data, create calculated columns and measures using formulas, build PivotTables and PivotCharts, and then further analyze the data so that you can make timely business decisions without requiring IT assistance.”

The primary expression language that Microsoft uses in Power Pivot is DAX (Data Analysis Expressions), although others can be used in specific situations. Again, as Microsoft explains, “DAX is a collection of functions, operators, and constants that can be used in a formula, or expression, to calculate and return one or more values. Stated more simply, DAX helps you create new information from data already in your model.” Fortunately for those already familiar with Excel, DAX formulas will look familiar, since many of the formulas have a similar syntax (e.g., SUM, AVERAGE, TRUNC).

For clarity, the key benefits of using Power Pivot vs. basic Excel can be summarized as the following:

In the following sections, I’ll run through each of the above and show you how Power Pivot for Excel can be helpful.

1) Importing Large Datasets

As discussed previously, one of the major limitations of Excel pertains to working with extremely large datasets. Fortunately for us, Excel can now load well over the one-million row limit directly into Power Pivot.

To demonstrate this, I generated a sample dataset of two years’ worth of sales for a sporting goods retailer with nine different product categories and four regions. The resulting dataset is two million rows.

Using the Data tab on the ribbon, I created a New Query from the CSV file (Exhibit 1). This functionality used to be called PowerQuery, but as of Excel 2016, it is more tightly integrated into the Data tab of Excel.

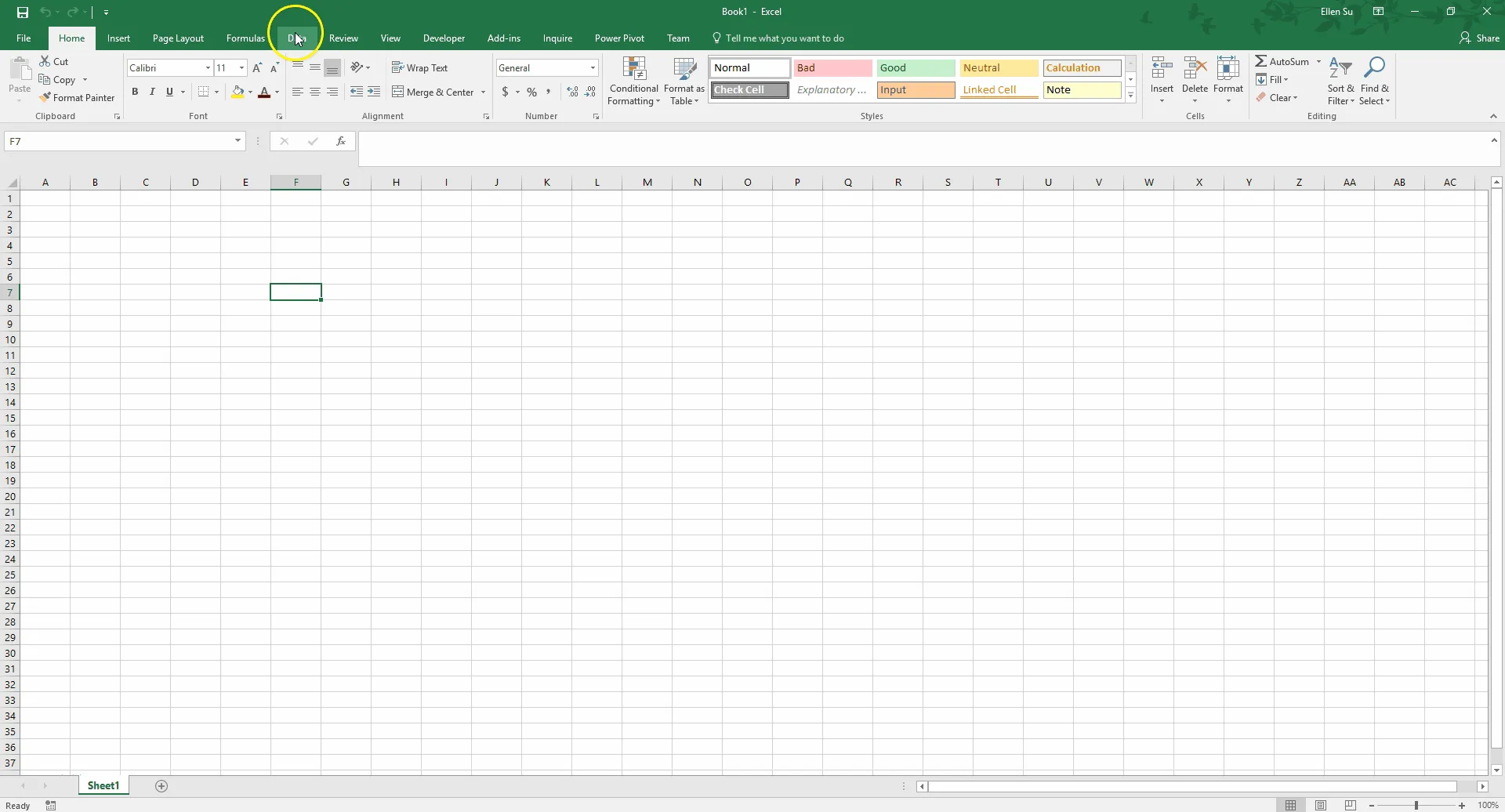

Exhibit 1: Creating a New Query

Exhibit 1 animated GIF

From a blank workbook in Excel to loading all two million rows into Power Pivot, it took about one minute! Notice that I was able to perform some light data formatting by promoting the first row to become the column names. Over the past few years, the Power Query functionality has vastly improved from an Excel add-in to a tightly integrated part of the Data tab on the toolbar. Power Query can pivot, flatten, cleanse, and shape your data through its suite of options and its own language, M.

2) Importing Data from Multiple Sources

One of the other key benefits of Power Pivot for Excel is the ability to easily import data from multiple sources. Previously, many of us created multiple worksheets for our various data sources. Often, this process involved writing VBA code and copy/pasting from these disparate sources. Fortunately for us, though, Power Pivot allows you to import data from different data sources directly into Excel without having to run into the issues mentioned above.

Using the Query function in Exhibit 1, we can pull from any of the following sources:

Further, multiple data sources can be combined either in the Query function or in the Power Pivot window to integrate data. For example, you can pull production-cost data from an Excel workbook and actual sales results from SQL server through the Query into Power Pivot. From there, you can combine the two datasets by matching production-batch numbers to produce per-unit gross margins.

3) Working with Large Datasets

Another key advantage of Power Pivot for Excel is the ability to manipulate and work with large datasets to draw relevant conclusions and analysis. I’ll run through a few common examples below to give you a sense of the power of the tool.


Excel junkies will no doubt agree that PivotTables are both one of the most useful, and at the same time, one of the most frustrating tasks we perform. Frustrating particularly when it comes to working with larger data sets. Fortunately, Power Pivot for Excel allows us to easily and quickly create PivotTables when working with larger sets of data.

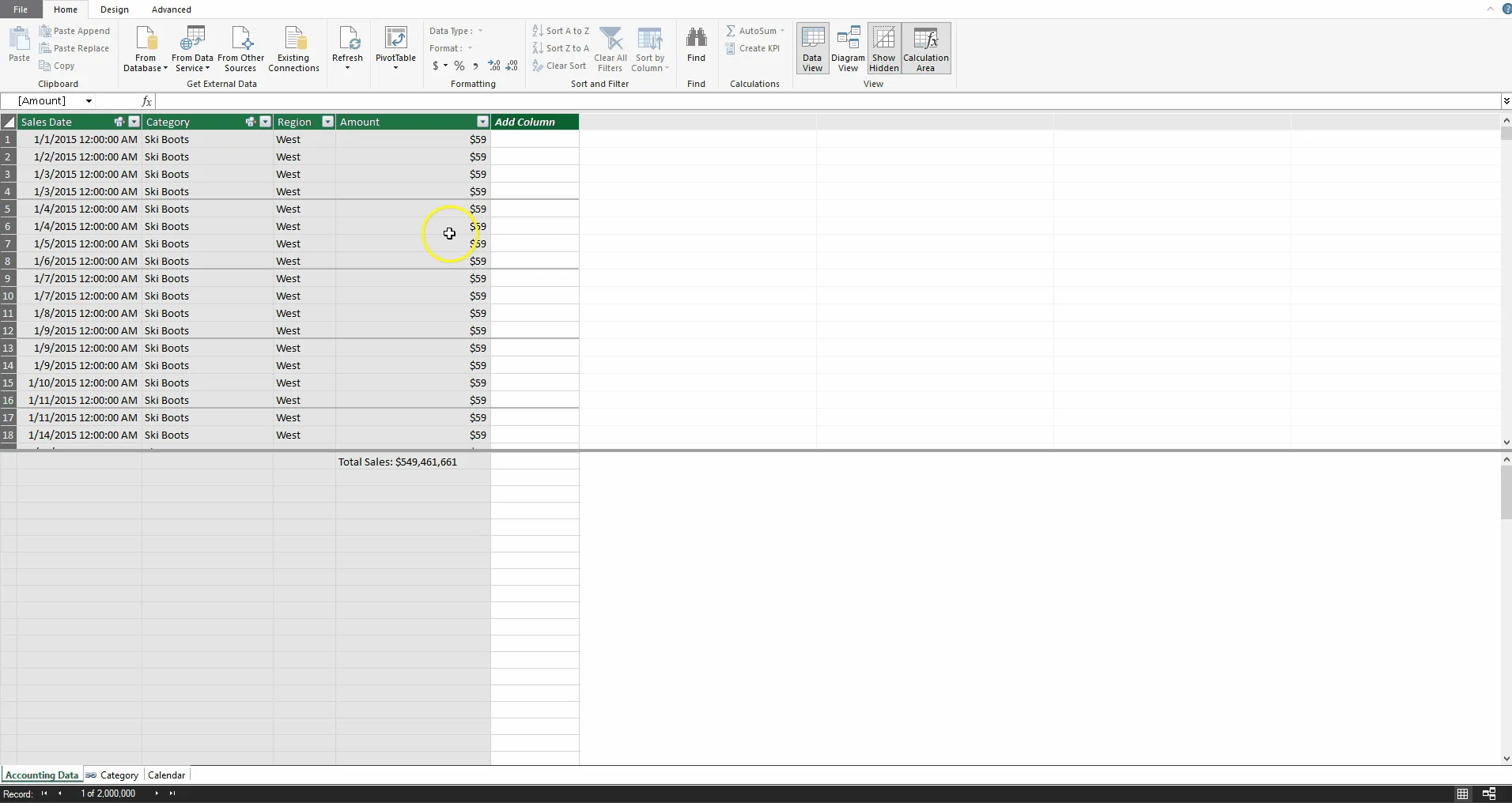

In the image below (Exhibit 2), notice how the Power Pivot window is separated into two panes. The top pane has the data, and the bottom pane houses the measures. A measure is a calculation that is performed across the entire dataset. I have entered a measure by typing in the highlighted cell.

Total Sales:=SUM('Accounting Data'[Amount])

This creates a new measure that sums across the Amount column. Similarly, I can type another measure in the cell below

Average Sales:=AVERAGE('Accounting Data'[Amount])

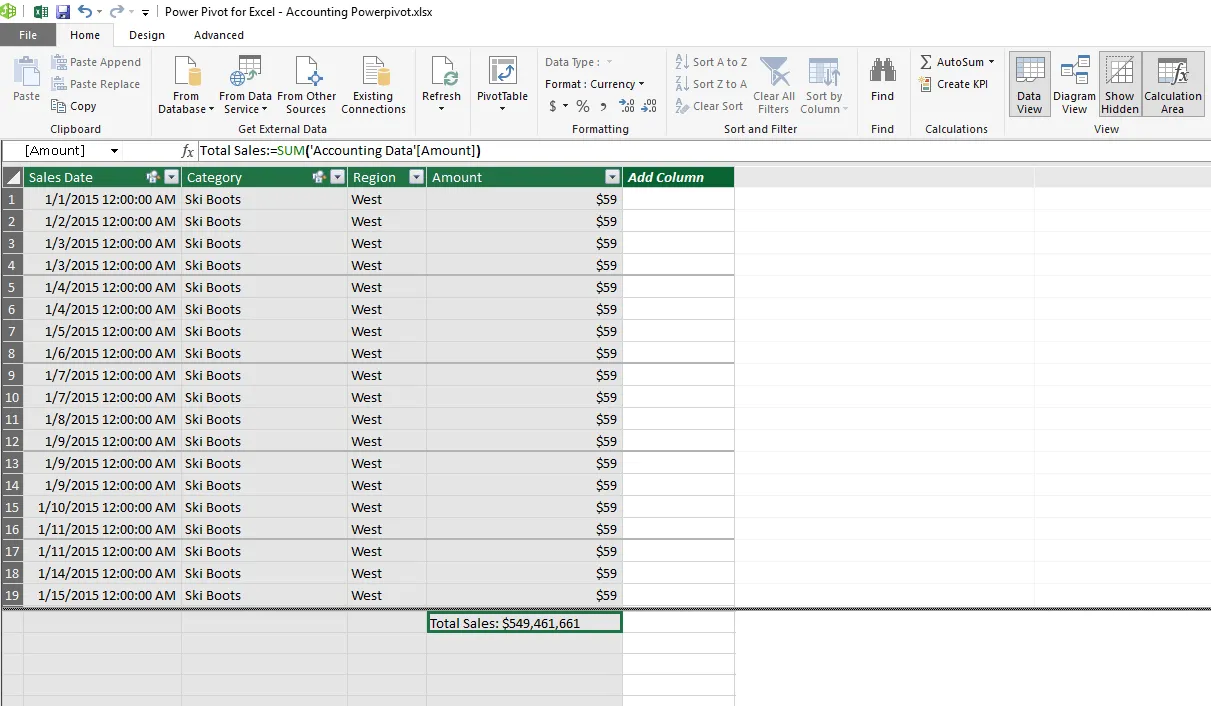

Exhibit 2: Creating Measures

Exhibit 2 static image

From there, watch how quickly it is to create a familiar PivotTable on a large dataset.

Exhibit 3: Creating a PivotTable

Exhibit 3 animated GIF

Dimension Tables

As financial analysts using Excel, we become adept at using convoluted formulas to bend the technology to our will. We master VLOOKUPSUMIF, and even the dreaded INDEX(MATCH()). However, by using Power Pivot, we can throw much of that out the window.

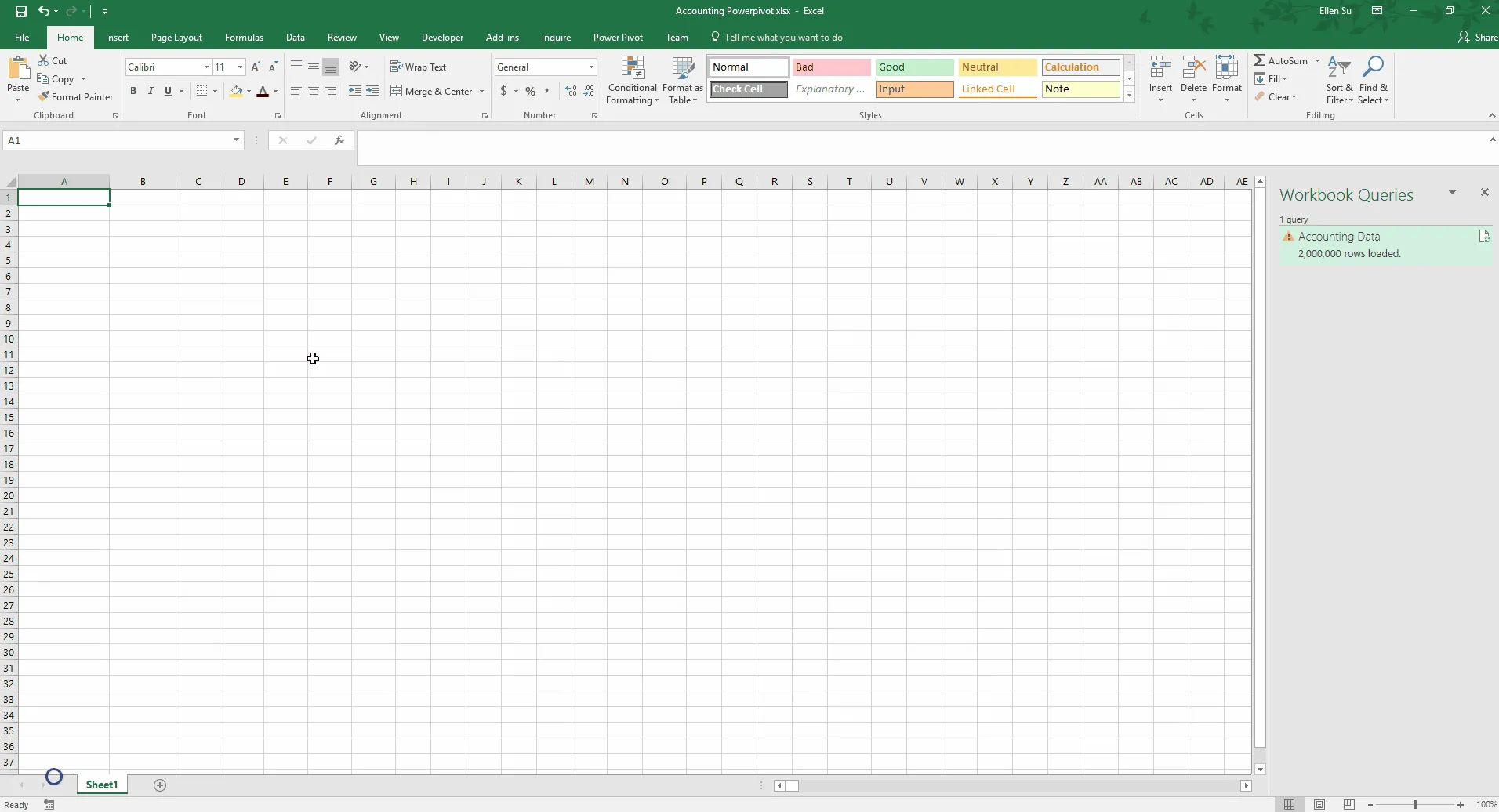

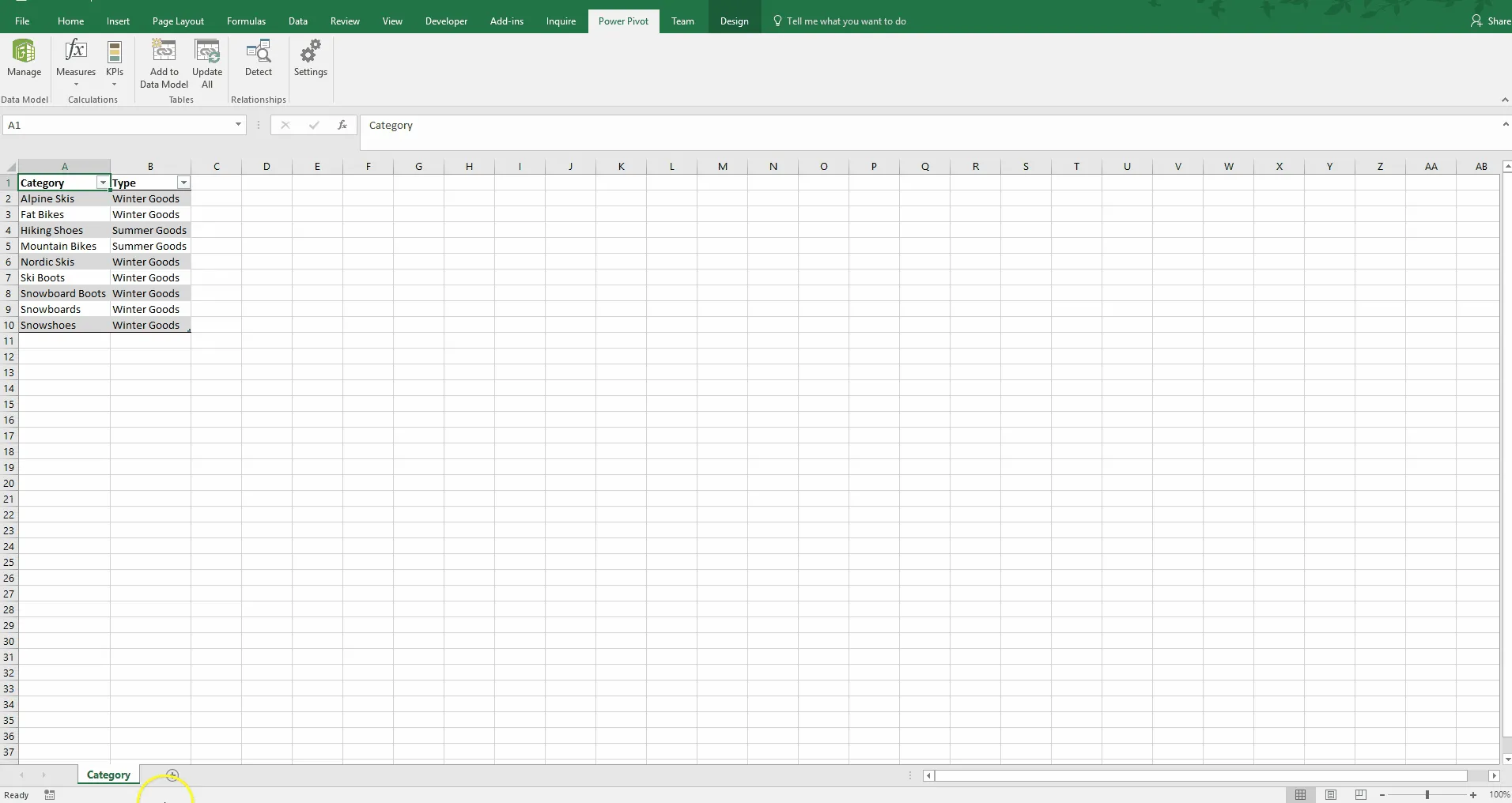

Exhibit 4: Adding a User-Created Table to a Power Pivot Model

Exhibit 4 animated GIF

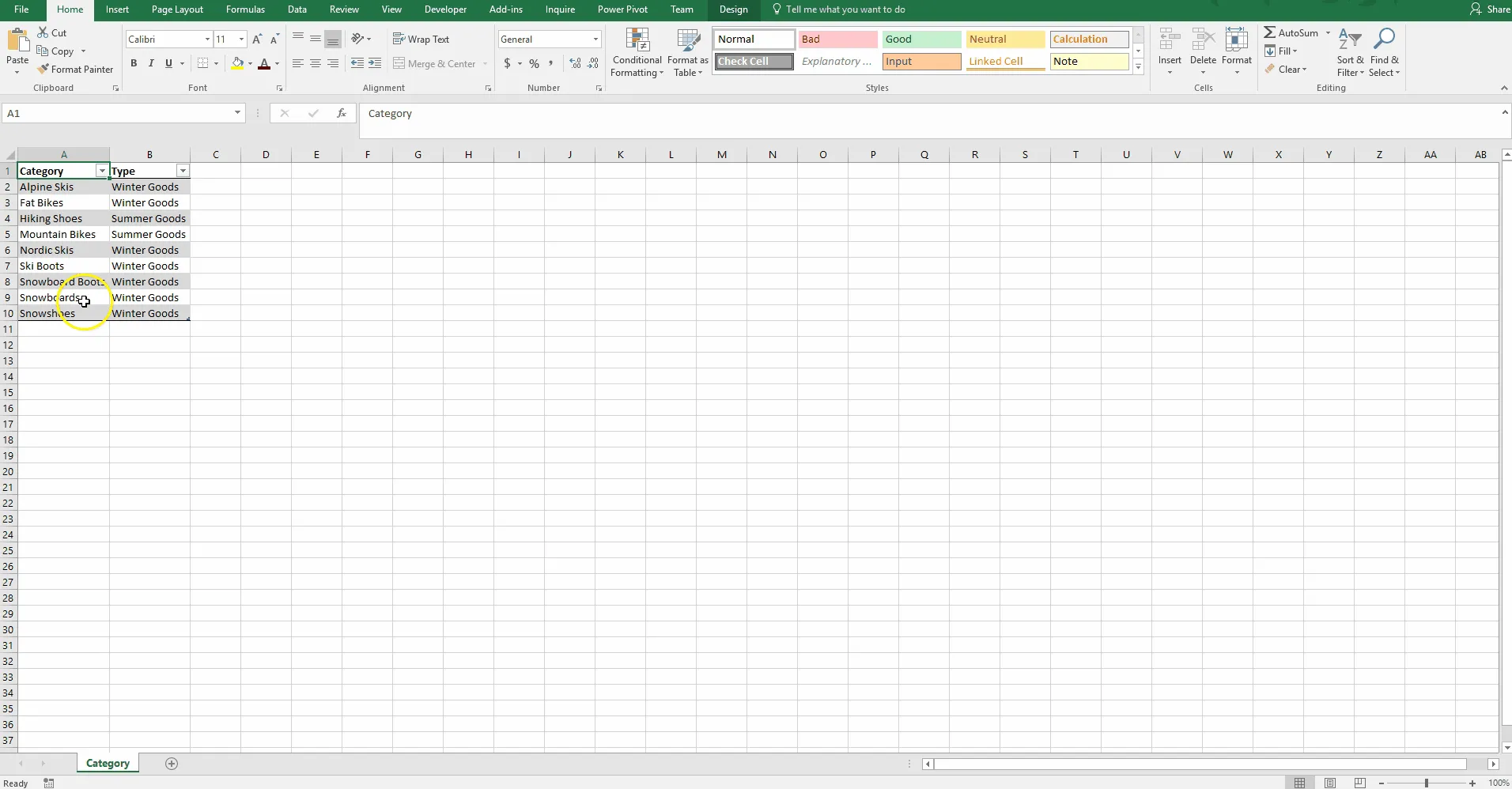

To demonstrate this functionality, I created a small reference table in which I assigned each Category to a Type. By choosing “Add to Data Model,” this table is loaded into Power Pivot (Exhibit 4 above).

I also created a date table to use with our dataset (Exhibit 5). Power Pivot for Excel makes it easy to create a date table quickly in order to consolidate by months, quarters, and days of the week. The user can also create a more custom date table to analyze by weeks, fiscal years, or any organization-specific groupings.

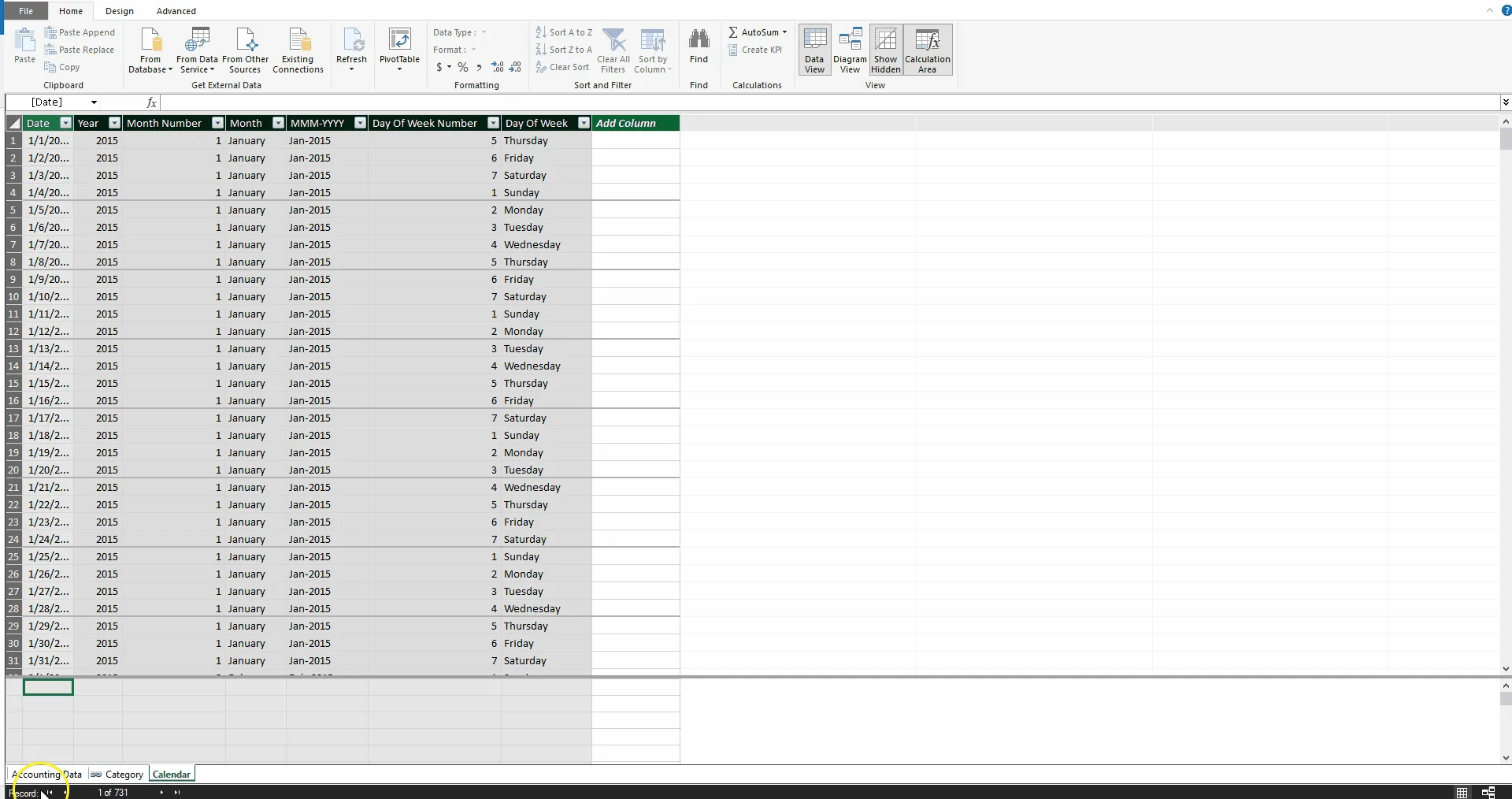

Exhibit 5: Creating a Date Table

Exhibit 5 animated GIF

Calculated Columns

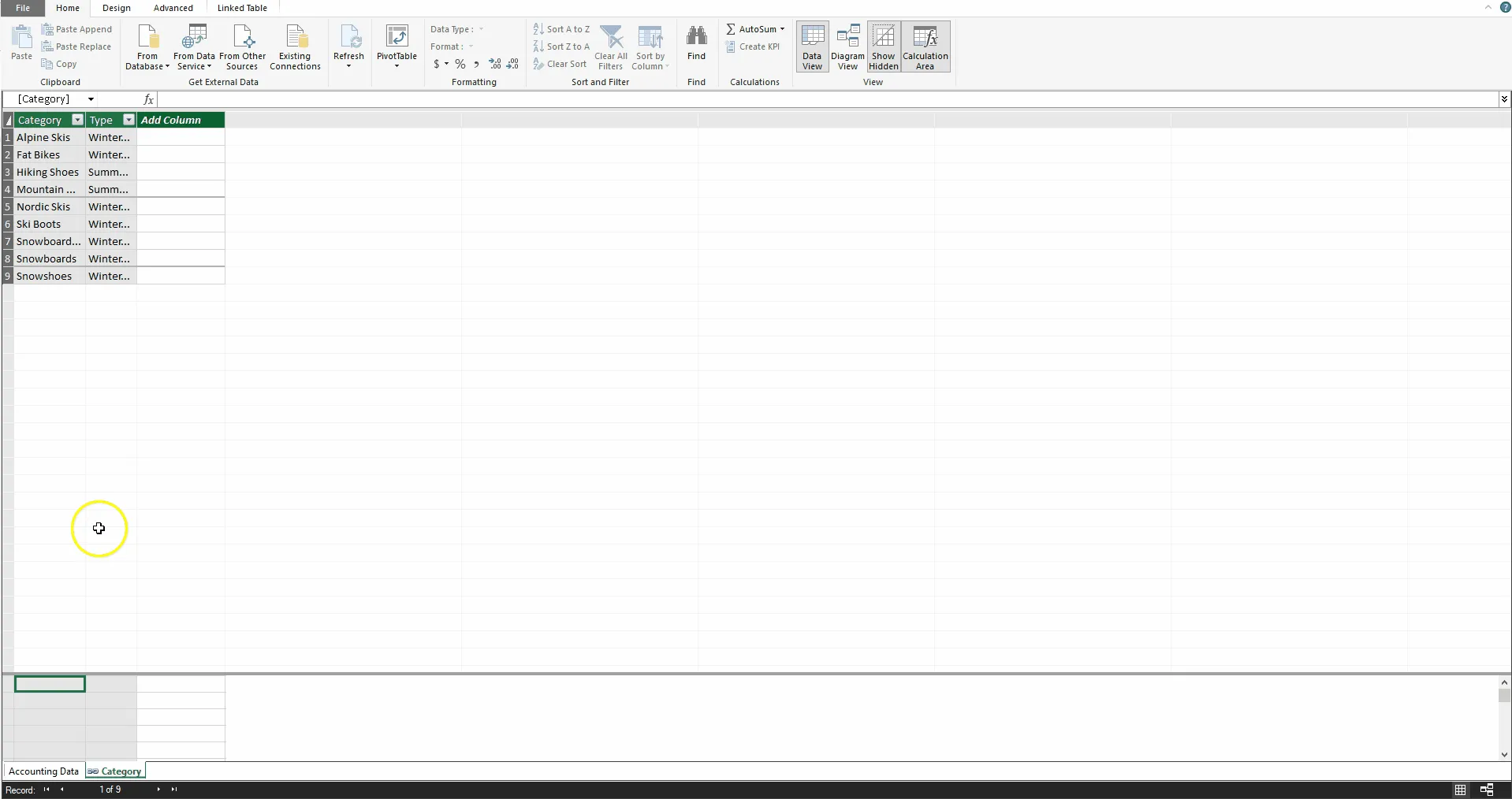

Besides measures, there is another type of calculation: calculated columns. Excel users will be comfortable writing these formulas, as they are very similar to writing formulas in data tables. I have created a new calculated column below (Exhibit 6) which sorts the Accounting Data table by Amount. Sales below $50 are labeled “Small,” and all others are labeled “Large.” Doesn’t the formula feel intuitive?

Exhibit 6: Creating a Calculated Column

Exhibit 6 animated GIF


We can then create a relationship between the Accounting Data table’s Category field and the Category table’s Category field using the Diagram View. Additionally, we can define a relationship between the Accounting Data table’s Sales Date field and the Calendar table’s Date field.

Exhibit 7: Defining Relationships

Exhibit 7 animated GIF

Now, without any SUMIF or VLOOKUP functions needed, we can create a PivotTable that calculated Total Sales by year, and type, with a slicer for Transaction Size.

Exhibit 8: PivotTable Using Relationships

Exhibit 8 animated GIF

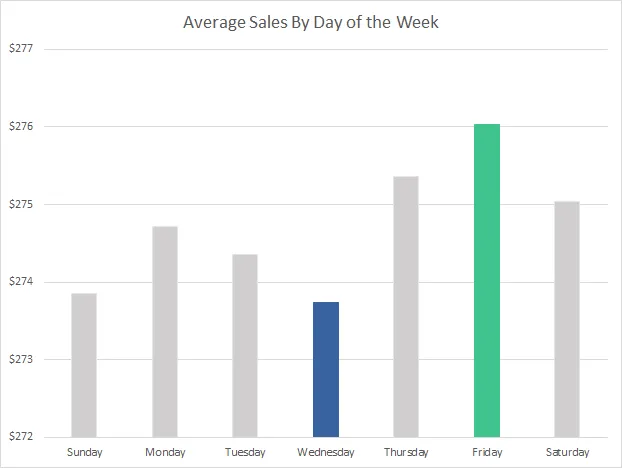

Or, we can create a chart of Average Sales for each day of the week using the new Calendar table.

Exhibit 9: PivotChart Using Relationships

Exhibit 9 static image

While this chart looks simple, it is impressive that it took less than ten seconds to create a consolidation over two million rows of data, without adding a new column to the sales data.

While being able to perform all these consolidated reporting scenarios, we can always still drill down into the individual line items. We retain our highly granular data.

Advanced Functions

So far, most of the analysis I have shown are relatively straightforward calculations. Now, I want to demonstrate the some of the more advanced capabilities of this platform.

Time Intelligence

Often, when we examine financial results, we want to compare it to a comparable timeframe from the previous year. Power Pivot has some built-in time intelligence functions.

Same Period Last Year Sales:=CALCULATE([Total Sales],SAMEPERIODLASTYEAR('Calendar'[Date]))

YOY Sales Growth:=if(not(ISBLANK([Same Period Last Year Sales])),([Total Sales]/[Same Period Last Year Sales])-1,BLANK())

For example, adding just two measures above to the Accounting Data table in Power Pivot enables me to produce the following PivotTable in a few clicks.

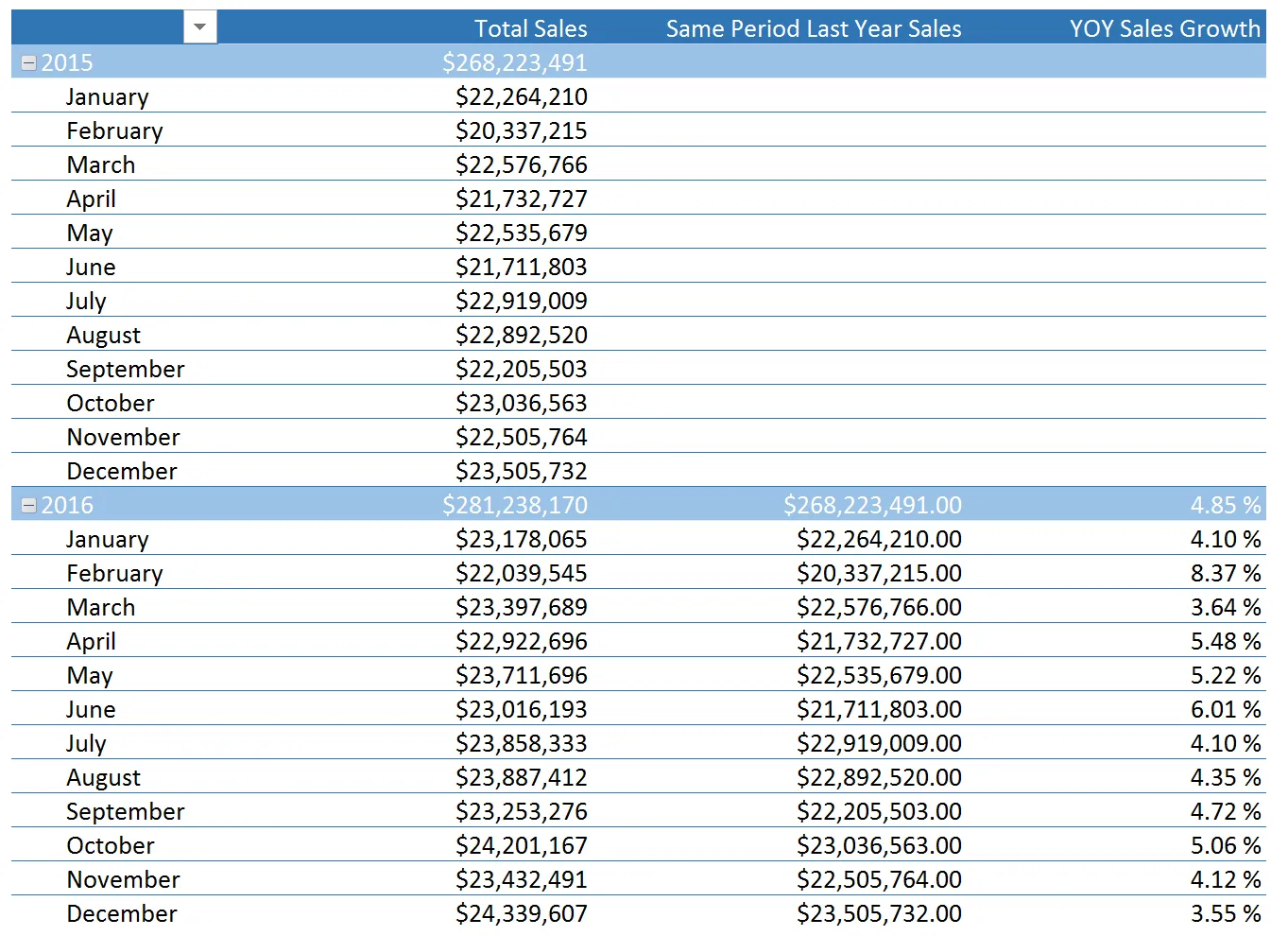

Exhibit 10: Time Intelligence PivotTable

Exhibit 10 static image

Mismatched Granularities

As a financial analyst, one problem I often have to solve is that of mismatched granularities. In our example, the actual sales data is shown to the category level, but let’s prepare a budget that is only on a seasonal level. To further this mismatch, we will prepare a quarterly budget, even through the sales data is daily.

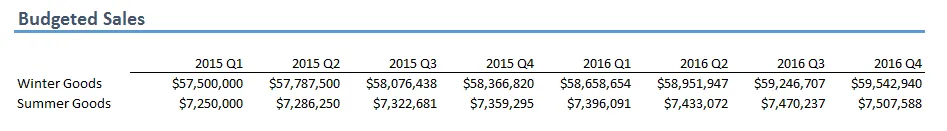

Exhibit 11: Mismatched Granularities – Budget Table

Exhibit 11 static image

With Power Pivot for Excel, this inconsistency is easily solved. By creating two additional reference tables, or dimension tables in database nomenclature, we can now create the appropriate relationships to analyze our actual sales against the budgeted amounts.

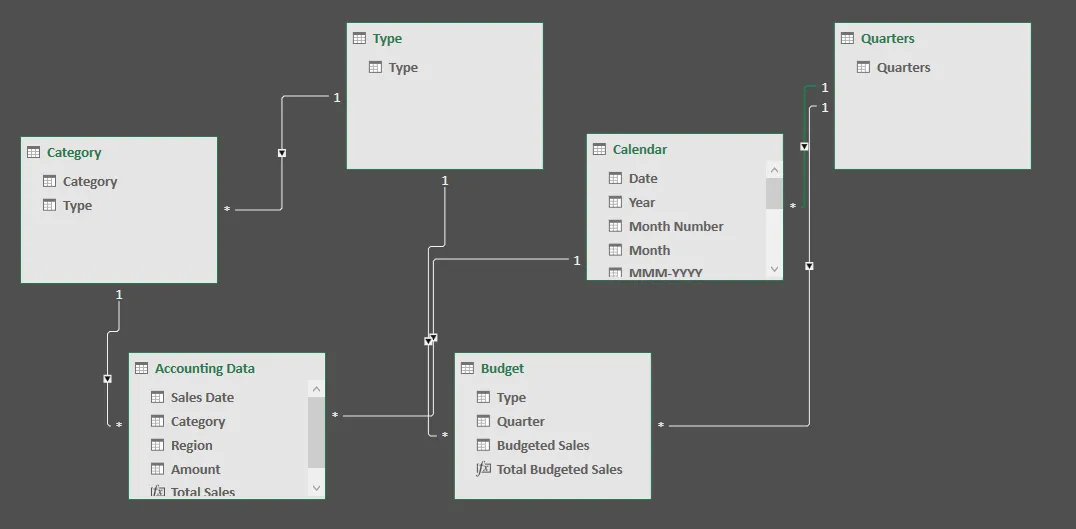

Exhibit 12: Mismatched Granularities – Relationships

Exhibit 12 static image

In Excel, the following PivotTable comes together quickly.

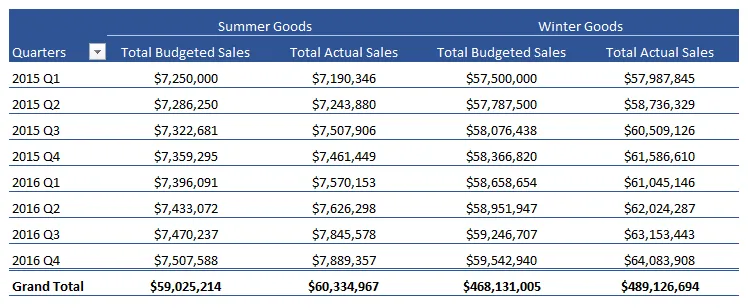

Exhibit 13: Mismatched Granularities – Budget vs. Actual Results

Exhibit 13 static image

Further, we can define new measures that calculate the variance between actual sales and budgeted sales as below:

Actual-to-Budget Variance:=if(ISBLANK([Total Budgeted Sales]),BLANK(),[Total Sales]/[Total Budgeted Sales]-1)

Using this measure, we can show the variance on a PivotTable.

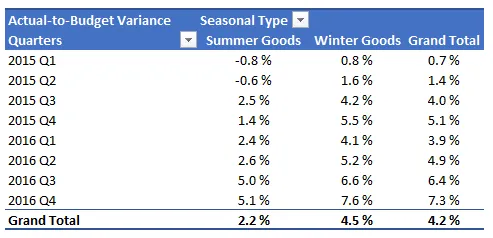

Exhibit 14: Mismatched Granularities – Variance Results

Exhibit 14 static image

Percent of Total

Finally, let’s examine sales in a particular category as a percent of all sales (e.g., category contribution to overall sales), and sales in a particular category as a percent of all sales of the same type (e.g., category contribution to seasonal-type sales). I created the two measures below:

Total Sales as Percent of All Sales:=[Total Sales]/CALCULATE([Total Sales],ALL('Accounting Data'))
Total Sales as Percent of Type:=[Total Sales]/CALCULATE([Total Sales],ALL('Accounting Data'[Category]))

Those measures can now be deployed in a new PivotTable:

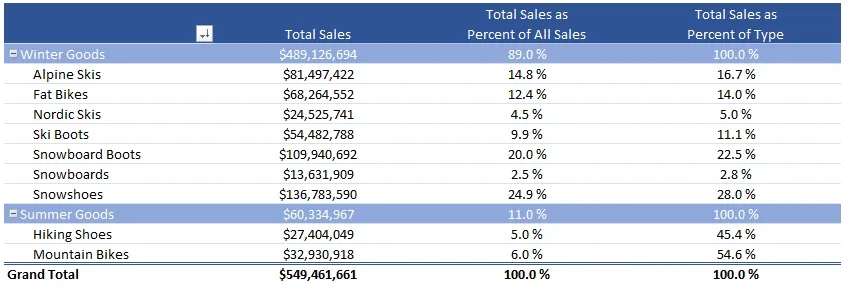

Exhibit 15: Percent of Total

Exhibit 15 static image

Notice how the calculations are performed at both the category and seasonal type level. I love how quickly and effortlessly these calculations are performed on such a large dataset. These are just a few examples of the elegance and sheer computational power of Power Pivot.


Another benefit is that file sizes shrink. The original file size was 91MB, and now it is under 4MB. That is a compression of 96% of the original file.

Exhibit 16: File Sizes

Exhibit 16 static image

How does this happen? Power Pivot uses the xVelocity engine to compress the data. In simple terms, the data is stored in columns rather than rows. This storage method allows the computer to compress duplicate values. In our example dataset, there are only four regions that are repeated over all two million rows. Power Pivot for Excel can more efficiently store this data. The result is that for data that have many repeating values, it costs much less to store this data.

One thing to note is that I used whole-dollar amounts in this sample dataset. If I had included two decimal points to reflect cents, the compression effect would lessen to a still-impressive 80% of the original file size.

SSAS Tabular

Power Pivot models can also be scalable to the entire enterprise. Let’s say you build a Power Pivot model that starts gaining many users in the organization, or the data grows to ten million rows, or both. At this point, you may not want thirty different users refreshing the model or making changes. The model can be seamlessly converted into SSAS Tabular. All the tables and relationships are retained, but now you can control the refresh frequency, assign roles (e.g., read-only, read and process) to various users, and deploy only a small Excel front-end which links into the Tabular model. The result is that your users could then access the deployed Tabular model with a small workbook, but not have access to the formulas and measures.

4) Data Visualization and Analysis

CUBE Formulas

One of the constant requests of my clients is that I create reporting that conforms to a strictly defined layout. I have clients that request specific column widths, RGB color codes, and pre-defined font names and sizes. Consider the following dashboard:

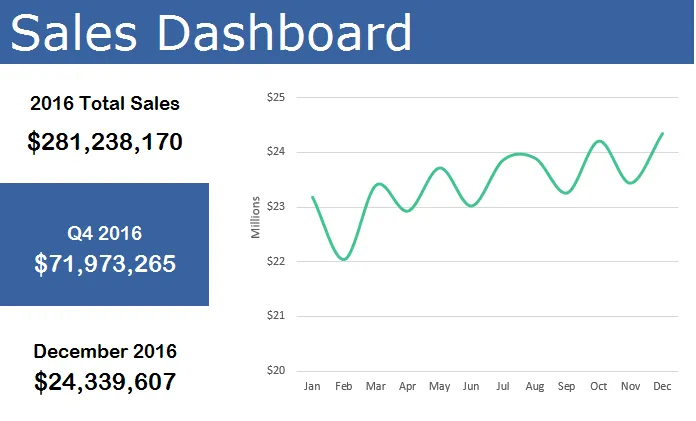

Exhibit 17: CUBE Formulas Embedded

Exhibit 17 static image

How do we populate the sales numbers without generating PivotTables if all of our sales are housed with Power Pivot for Excel? Using CUBE formulas! We can write CUBE formulas within any Excel cell and it will perform the calculation using the Power Pivot model we have already constructed.

For example, the following formula is typed in the cell under “2016 Total Sales:”

=CUBEVALUE("ThisWorkbookDataModel","[Measures].[Total Sales]","[Calendar].[Year].[2016]")

The first part of the formula, highlighted in yellow, refers to the name of the Power Pivot model. In general, it is usually ThisWorkbookDataModel for newer versions of Power Pivot for Excel. The portion in green defines that we want to use the measure Total Sales. The part in blue instructs Excel to filter for only rows that have a Sales Date with a year equal to 2016.

Behind the scenes, Power Pivot has constructed an Online Analytical Processing (OLAP) cube with the data, calculated columns, and measures. This design allows the Excel user to then access the data by fetching directly with the CUBE functions. Using CUBE formulas, I have been able to construct full financial statements that conform to predefined layouts. This capability is one of the highlights of using Power Pivot for Excel for financial analysis.

Power BI

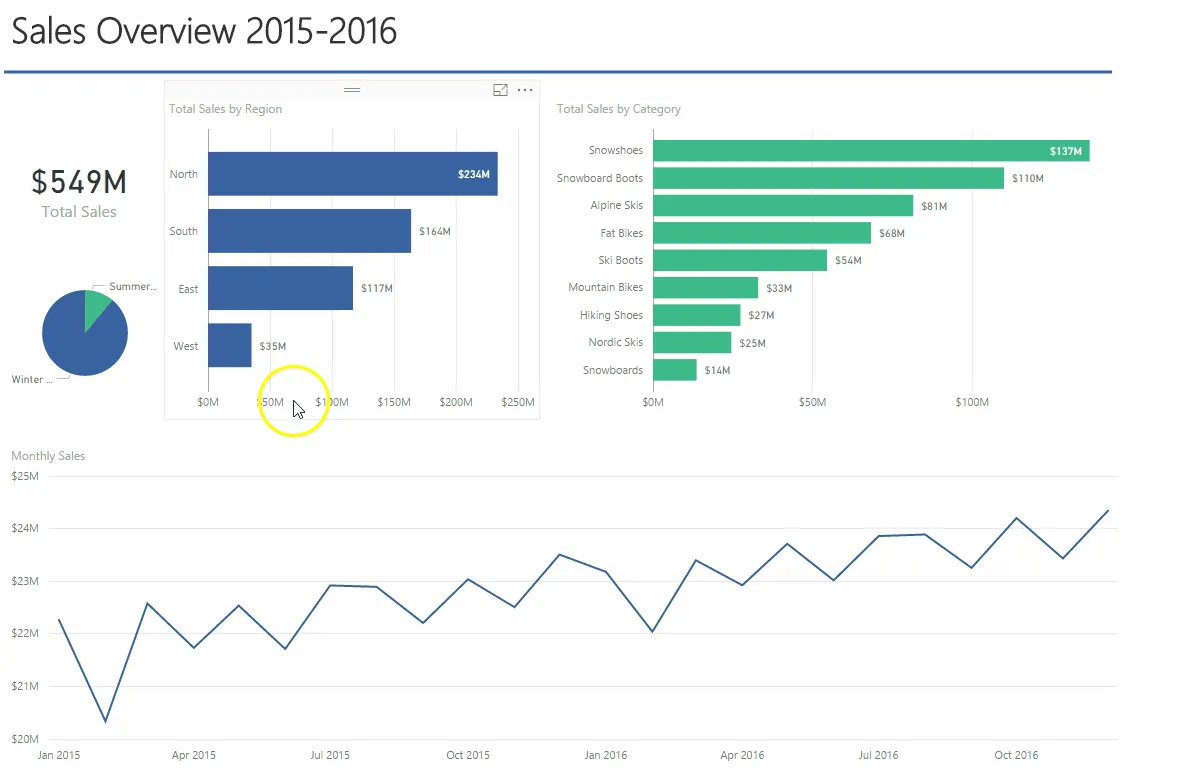

Another advantage of Power Pivot for Excel is that you can quickly take any Power Pivot workbook you build and quickly convert it into a Power BI model. By importing the Excel workbook directly into the Power BI Desktop app or Power BI Online, you can analyze, visualize, and share your data with anyone in your organization. Essentially, Power BI is Power Pivot, PowerQuery, and SharePoint all rolled into one. Below, I have created a dashboard by importing the previous Power Pivot for Excel workbook into the Power BI desktop application. Notice how interactive the interface is:

Exhibit 18: Power BI

Exhibit 18 animated GIF

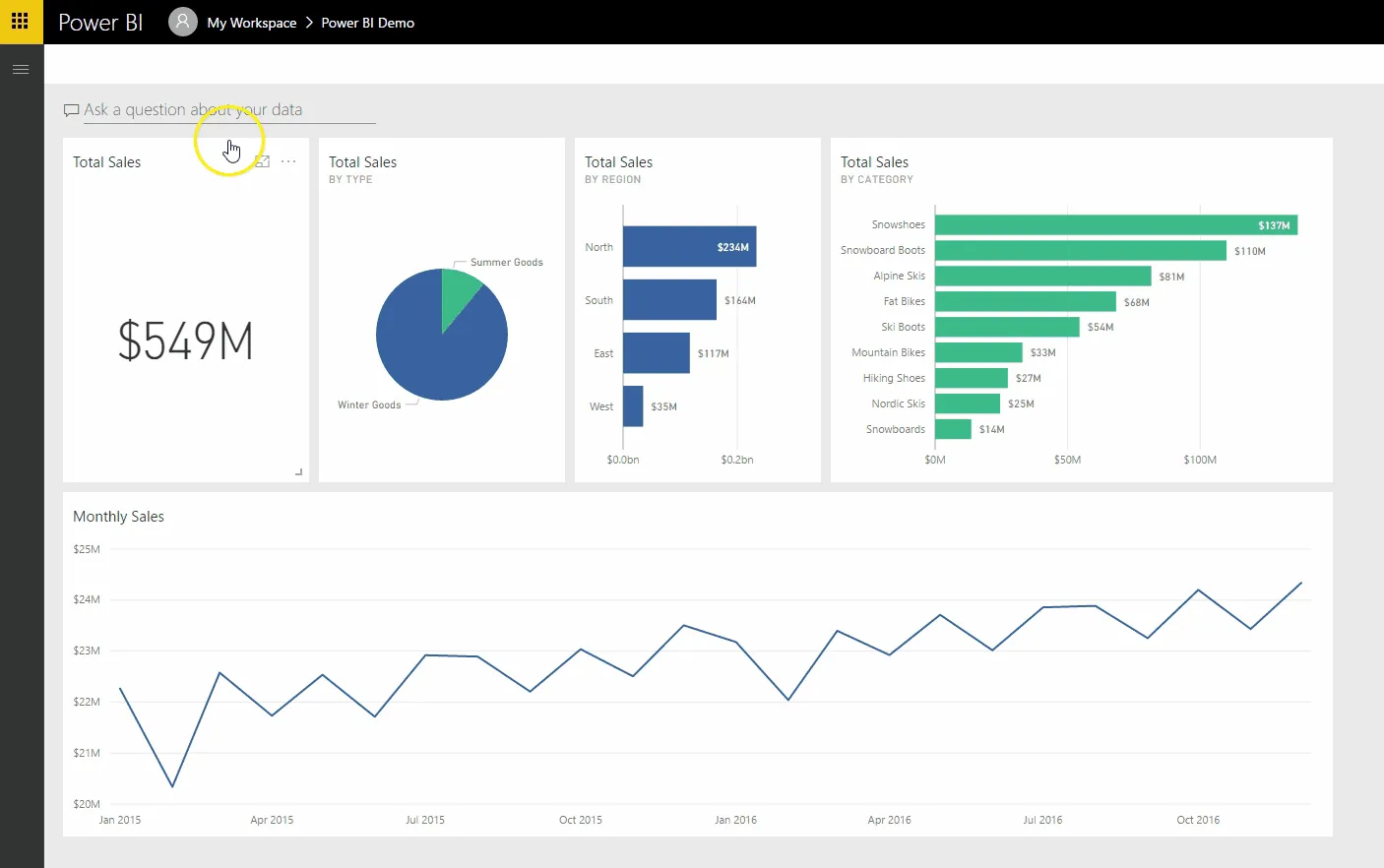

One great thing about Power BI is the Natural Language Q&A. To demonstrate, I uploaded Power BI model onto my online Power BI account. From the website, I can ask questions and Power BI constructs the appropriate analysis as I type:

Exhibit 19: Natural-Language Q&A

Exhibit 19 animated GIF

This type of query ability enables the user to ask questions of the data model and interact with the data in an easier way than in Excel.

Another benefit of Power BI is that the developers at Microsoft are constantly releasing updates to it. New features, many user-requested, are pushed out monthly. Best of all, it is a seamless transition from Power Pivot for Excel. So, the time you invested learning the DAX formulas can be deployed in Power BI! For the analyst who needs to share his analysis to many users on varying devices, Power BI may be worth exploring.

Best Practices

Once you get started, there are a few best practices that you should follow.

The first is to thoughtfully decide what to import in the first place. Will you ever use the salesperson’s home address? Do I need to know my customer’s email address in the context of this workbook? If the goal is to aggregate the data into a dashboard, then some of the data that is available will not be necessary for those calculations. Spending time curating the data coming in will greatly alleviate issues and memory-usage later when your dataset expands.

Another best practice is to remember that Power Pivot is not Excel. In Excel, we are accustomed to creating calculations by constantly expanding our worksheets to the right. Power Pivot for Excel most efficiently processes the data if we limit this desire for manifest destiny. Instead of continuously creating calculated columns to the right of your data, learn to write measures in the bottom pane. This habit will ensure smaller file sizes and quicker computations.

Finally, I would suggest using plain-English names for measures. This one took me a long time to adopt. I spent the first few years making up names like SumExpPctTotal, but once other people began to use the same workbooks, I had a lot of explaining to do. Now, when I start a new workbook, I use measure names like Expense Line Item as Percent of Total Expenses. While the name is longer, it is much easier for someone else to use.

Real-World Use Cases

In this article I have presented only a handful of the ways in which Power Pivot for Excel allows you to take an important step beyond plain-vanilla Excel. I thought it would be useful to highlight some real-world use cases in which I’ve found Power Pivot for Excel is extremely useful.

Here are some:

  • Analyze performance of a large portfolio of assets over varying time ranges: Since Power Pivot for Excel allows us to define measures that compare a time-period with a previous one, we can quickly have quarter-over-quarter, year-over-year, and month-over-month performance all on a rolling basis by writing only a few measures.
  • Summarize accounting data using customized aggregation levels: By identifying each general-ledger line item by name, category, and financial statement, reports can quickly be created that include the appropriate line items.
  • Chains can identify same-store sales: Using a table that maps when stores come online, financial results can be compared on a same-store basis.
  • Pinpoint over- and under-performers in sales: PivotTables can be created that highlight the top five SKUs and bottom five SKUs by sales, gross margins, production timeframes, etc.
  • Retailers can define calendar tables that use a 4-4-5 configuration: Using a custom date table, a retailer can assign each day to a specific 4-4-5 month easily, then daily sales results can be rolled into the corresponding month.

From Clunky Spreadsheets to Modern Workbooks

As financial analysts, we are required to perform complex calculations on ever-expanding datasets. Since Excel is already the default analytical tool, the Power Pivot learning curve is easy, and many of the functions mirror Excel’s native functions.

With the use of CUBE functions, Power Pivot for Excel seamlessly blends into your existing Excel workbooks. The computational efficiency gain cannot be overlooked. Assuming a 20% faster processing speed, which is conservative, the financial analyst that spends six hours a day within Excel can save 300 hours a year!

Additionally, we can now analyze datasets that are much larger than we could previously with our traditional Excel. With models designed efficiently, we can easily have 10x the amount of data that we previously were allowed in traditional Excel, while maintaining quick analytical agility. With the ability to convert the models from Power Pivot to SSAS Tabular, the amount of data that can be processed is 100–1,000 times what we can achieve in Excel.

Power Pivot for Excel’s ability to perform lightning-fast calculations on large amounts of data and still retain the ability to dive into the details can transform financial analysis from clunky spreadsheets to modern workbooks.

If you’re interested in trying Power Pivot for Excel out, below are some useful materials to get you started.

Useful References and Guides

Collie, R., & Singh, A. (2016). Power Pivot and Power BI: The Excel user’s guide to DAX, Power Query, Power BI & Power Pivot in Excel 2010-2016. United States: Holy Macro! Books.

Ferrari, A., & Russo, M. (2015). The definitive guide to DAX: Business intelligence with Microsoft Excel, SQL Server Analysis Services, and Power BI. United States: Microsoft Press, USA.
