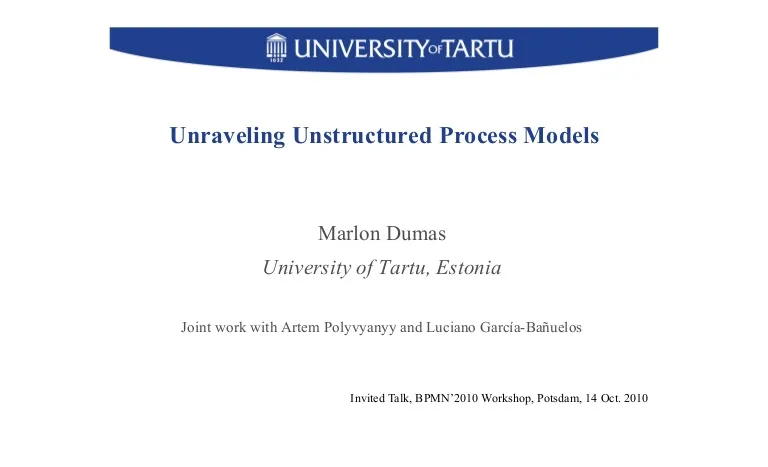

Unraveling Unstructured Process Models

Marlon Dumas

University of Tartu, Estonia

Joint work with Artem Polyvyanyy and Luciano García-Bañuelos

Invited Talk, BPMN’2010 Workshop, Potsdam, 14 Oct. 2010

Poll: Which desk do you

prefer?

2

Poll: Which model do you prefer?

3

The Problem

• Premise: Structured is “better”

– Easier to understand

– Easier to analyze

– Easier to automatically layout

– Easier to abstract (zoom-out)

• We know not all models can be structured…

• Which ones can, which ones can’t?

4

Analysis of Structured Models

5

CTparallel = Max{T1, T2,…, TM}

CT = p1T1+p2T2+…+pmTm=

CT = T/(1-r)

CT = T1+T2+…+ Tm

Laguna & Marklund (2005): Business Process Modeling, Simulation and Design

Automated Layout and Abstraction

6

Wil van der Aalst et al., Process Mining Tutorial

A Bit of History

7

1968 1969 1970s (and 80s)

20 years (and 200 papers) later…

• Everything can be structured if you accept to

break and continue

• Everyone forgot to release their implementation

(they were ashamed since it was full of GOTOs)

8

40 years (and 400 papers) later

• We can structure any BPMN

diagram, except:

– “Incorrect” ones

– Cycles with multiple exit points

– Z-structures

– Inclusive join gateways, complex

gateways and other demons

• Try it out: http://sep.cs.ut.ee/Main/bpstruct

9

Corollary (if you care)

• Any (sound) BPMN model can be

transformed into an equivalent (readable)

BPEL process definition

10

• If BPEL had break/continue statements or we use boolean variables to simulate break/continue statememts

• And the BPMN model does not have inclusive join gateways, complex gateways and other demons

• And some other minor details not worth mentioning

11

Behavioral Equivalence

Preserves the level of concurrency in

a process model

Sequential simulation of a

process model

Fully concurrent

bisimilar (FCB)

Weakly

bisimilar

Weakly

bisimilar

Sequential simulation of a

process model

Starting Point – Process

Structure Tree

12

Johnson et al. (PLDI’1994), Vanhatalo et al. (BPM’2008)

13

Taxonomy of Process Fragments

■ Trivials, polygons, and bonds are structured fragments

■ Rigids are “unstructured”

13

Homogeneous XOR Rigid

14

Homogeneous AND Rigid

15

Block-structured version…

16

Homogeneous AND Rigid that

cannot be structured

• Causal rules:

– {A, B} { C }

– { B } { D }

• Overlap on the left-hand side of the rules

Compare to this…

• Causal relations

– {A, B} {C, D}

Heterogeneous Acyclic Rigid

19

Equivalent Structured Fragment

20

The Key Ingredient: Unfoldings

An unfolding is a

representation of a net without

“merge” points

A complete prefix unfolding is

a finite initial part of the unfolding

that contains full information

about the reachable states

21

Ordering Relations

■ Two transitions of an occurrence net are in one of the following relations:

□ A and B are in causal relation (A>B), iff there exists a path from A to B

□ A and B are in conflict (A#B), iff there are two transitions t1, t2 that share

an input place and there is a path from t1 to A and a path from t2 to B

□ A and B are in concurrency (A||B) relation iff A and B are neither in

causal, nor in conflict relation

A>C1

B>D2

B#A

A#D2

C2||D2

D2||C2

22

FCB and Ordering Relations

Two process models are FCB-equivalent …

… if and only if, (complete prefix) unfoldings of both models expose

same ordering relations

23

Structuring Process Models

Compute ordering relations

of the (unstructured)

process model

Construct a block-structured

process model from ordering

relations

24

Ordering Relations Graph

An ordering relations graph

25

Modular Decomposition Tree (MDT)

The MDT is unique and can be computed in linear time

The MDT

■ A linear (L) module is a total order on a set of nodes of a graph

■ A complete (C) module is a complete graph, or a clique

■ A primitive (P) module is neither trivial, nor linear, nor complete

A module is a set of edges with uniform structure

26

27

Structuring Acyclic Process Models

A primitive module

Let G be an ordering relations graph. The MDT of G has no primitive module,

iff there exists a well-structured process model W such that G is the ordering

relations graph of W.

Heterogeneous Cyclic Rigid

28

For further details…

Download and try:

• http://sep.cs.ut.ee/Main/bpstruct

• http://code.google.com/p/bpstruct/

Perspectives:

• Analyze

• Decompose (e.g. for distributed execution)

• Refactor (extract duplicate fragments into subprocesses)

• Visualize

29
