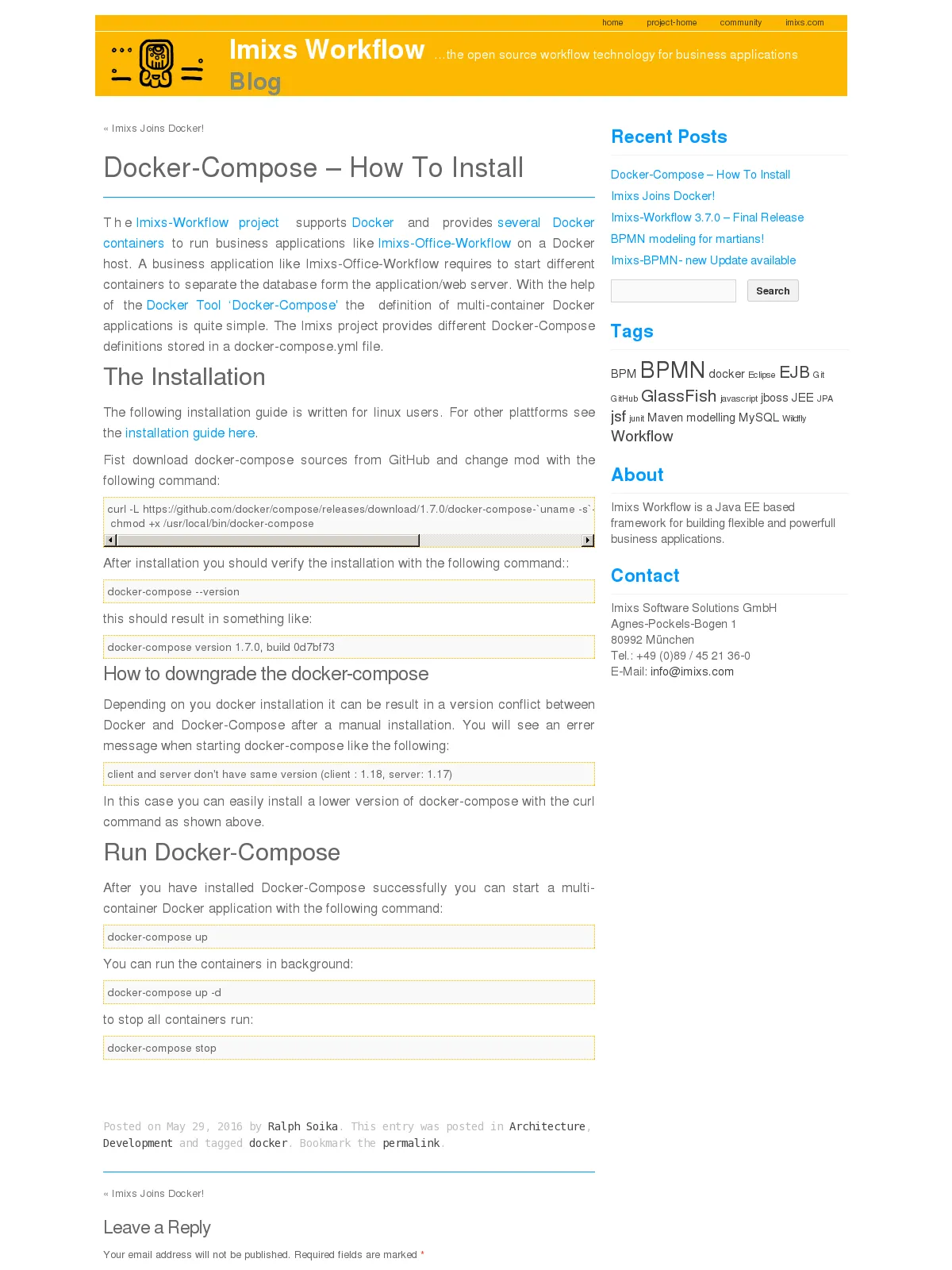

Docker-Compose – How To Install

Blog: Imixs Workflow Blog

The Imixs-Workflow project supports Docker and provides several Docker containers to run business applications like Imixs-Office-Workflow on a Docker host. A business application like Imixs-Office-Workflow requires to start different containers to separate the database form the application/web server. With the help of the Docker Tool ‘Docker-Compose’ the  definition of multi-container Docker applications is quite simple. The Imixs project provides different Docker-Compose definitions stored in a docker-compose.yml file.

The Installation

The following installation guide is written for linux users. For other plattforms see the installation guide here.

Fist download docker-compose sources from GitHub and change mod with the following command:

curl -L https://github.com/docker/compose/releases/download/1.7.0/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose
 chmod +x /usr/local/bin/docker-compose

After installation you should verify the installation with the following command::

docker-compose --version

this should result in something like:

docker-compose version 1.7.0, build 0d7bf73

How to downgrade the docker-compose

Depending on you docker installation it can be result in a version conflict between Docker and Docker-Compose after a manual installation. You will see an errer message when starting docker-compose like the following:

client and server don't have same version (client : 1.18, server: 1.17)

In this case you can easily install a lower version of docker-compose with the curl command as shown above.

Run Docker-Compose

After you have installed Docker-Compose successfully you can start a multi-container Docker application with the following command:

docker-compose up

You can run the containers in background:

docker-compose up -d

to stop all containers run:

docker-compose stop





The post Docker-Compose – How To Install appeared first on Imixs Workflow.
