Columnar Format in Data Lakes For Dummies

Blog: NASSCOM Official Blog

Columnar data formats have become the standard in data lake storage for fast analytics workloads as opposed to row formats. Columnar formats significantly reduce the amount of data that needs to be fetched by accessing columns that are relevant for the workload. Let’s look at how this is happening with an example.

Analytical queries on stocks represent a multi-billion dollar business in the US because companies use these queries to understand sales trends, and understand stocks buying and selling patterns. Analytic queries mostly involve scans on the data. As an example, let’s try to query the average price for TESLA stock this year. TESLA is a popular stock and there’s going to be multiple records and the below scan will be a good way to evaluate this query.

Select  avg(price)
WHERE symbol = ‘TSLA’ AND date >= ‘2020/01/01’

In order to understand how columnar formats optimize the scan, let’s look at how row data formats read through this first.

Intuitively, the amount of time it takes to read is proportional to the amount of data we access in processing the query.

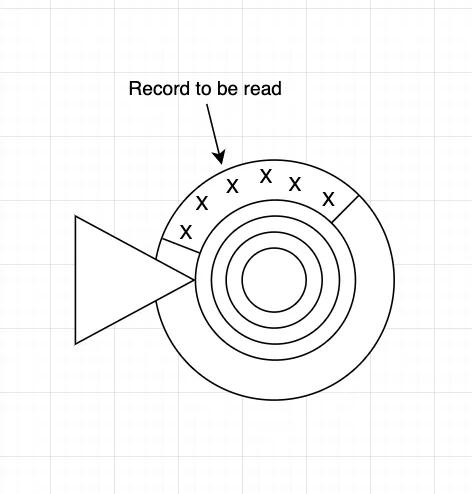

In a storage system, data is laid out in concentric rings and the data that is being read now is under the triangular structure called head. When the disk rotates and data passes off the head, it is read from the disk. Each ‘x’ here represents a column for the record.

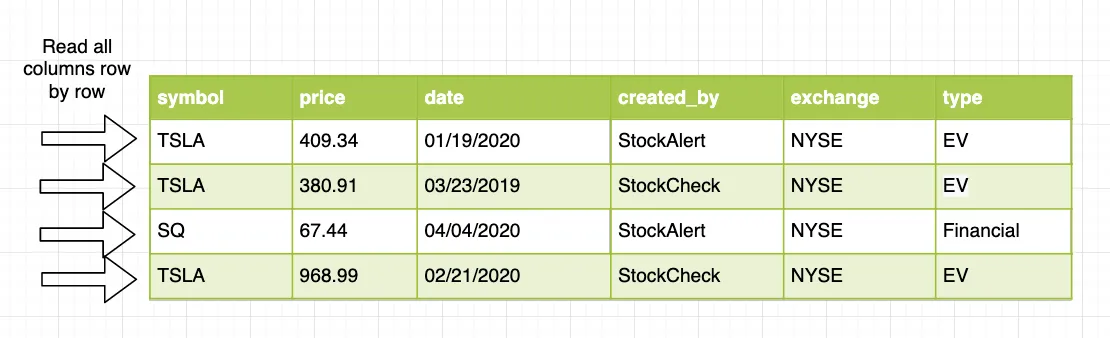

So, if you want to read three columns that are randomly allocated, we need to read through the entire record before we move onto the next record. So the time to scan the data will be the time it takes to read through the entire columns for these records.

Even though the query above needs to access price, symbol and date columns; when the data is laid out in a row by row fashion on the storage disk, we will end up reading all 6 columns in the data.

For 1 billion records assuming 100 Bytes each = 100GB at 100 MB/sec, it takes about 1000 seconds to read the data.

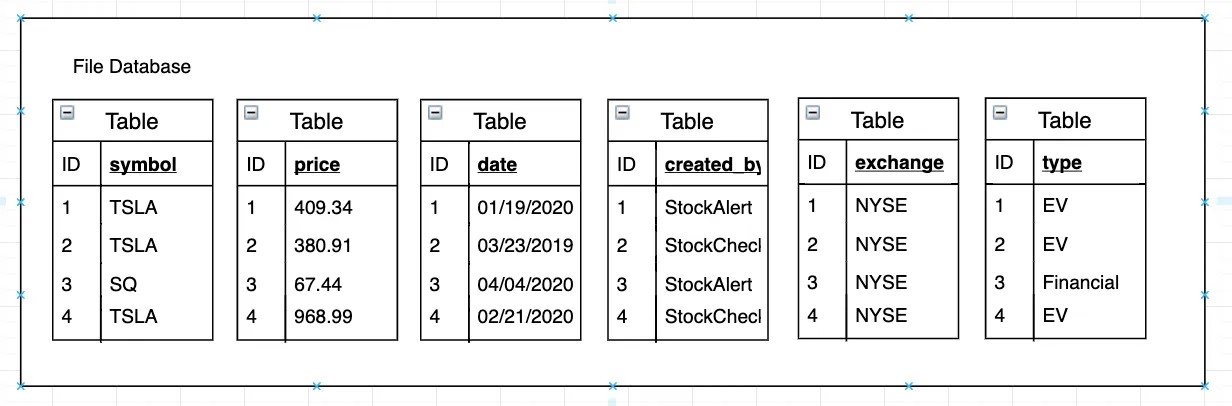

In the column representation, it lays out the data ‘column by column’. Assume every file is stored with its own database and when we write a stock quote to the columnar file, an ID is created and symbol, price, date, created_by, exchange, type are broken up and written to these different tables within these files.

When we try to read, we only need to access 3 columns for the records instead of all the columns. So we read price, symbol and date and ignore the rest of the columns.

For 1 billion records -> 100 Bytes each = 100GB x 3/6 at 100 MB/sec, it takes about 500 seconds. So, we are able to read through the records much faster.

In reality these tables tend to be really big but the queries tend to access only a few attributes and that means the columnar representation can be much much faster doing these scans, than the row oriented representation.

In addition to the efficient scans, columnar representation compresses the data well. Each column can use a different scheme for compression. Since the values in a column tend to be similar to one another, compression can be very efficient. For example, if the table is sorted by stock symbol column, a very straightforward way of Run Length Encoding (RLE) can be used to compress this data.


The above 10 values can be stored as TSLA times 3, SQ times 2 and AAPL times 2. If you think about a real world scenario, this stock table might contain billions of values and we can represent this column as a few thousand stock quotes in the files. Note that we cannot apply the same trick for all the columns like stock price for example.

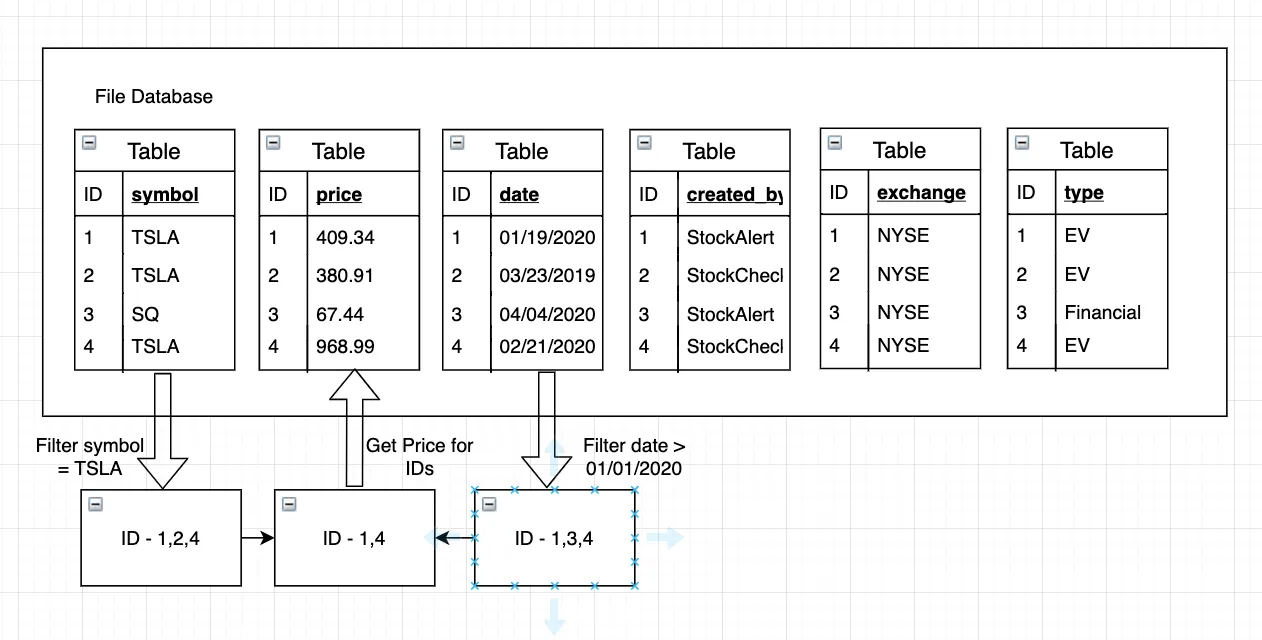

In the above example query, we are also doing a filter on symbol and date. So, we can simply look at the first table for stocks and the third table for date, filter down to the common ROW IDs and run a binary search(Row IDs are sorted) to pull out the price column values for these Row IDs. That’s Predicate Pushdown right there.

That’s why these columnar dataformats are so powerful because we not only reduce the overhead in retrieving the columns we are looking for, we also have the advantage of using these filtering restrictions and enhancements very effectively. Particularly when we are searching for a needle in a haystack kind of scenario and then being able to do these efficient scans over the data that we want to pull can save a lot of cost and time.

For a major ride services company, 30 days ride service records on 1 TB data has resulted in the following using ORC columnar format compared to JSON representation.

In summary:

In a data lake, columnar formats can provide orders of magnitude reduction in storage costs and query run time for analytic queries.

Key Idea : Reduce the amount of data accessed per query by limiting the reading only to  needed columns.
