BPMN 2.0 – Conditional Events
Blog: Imixs Workflow Blog
With version 4.2.0 the Imixs-Workflow engine supports conditional events. A conditional event can be defined with one of the BPMN Gateways Exclusive, Inclusive or EventBased.

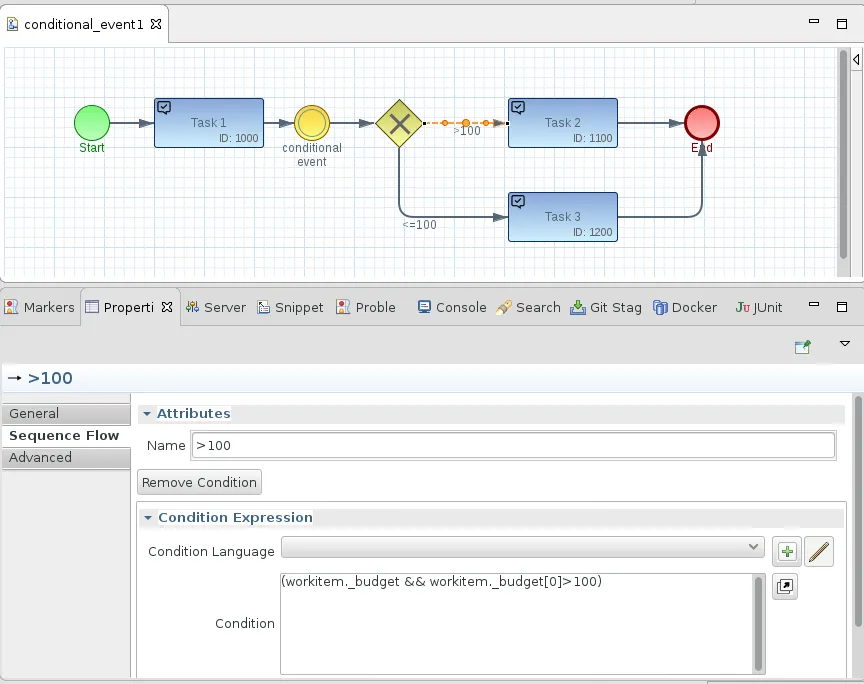

The conditions are defined as boolean rule expressions for each output of the gateway. A condition can be defined with the Script language JavaScript. The following example evaluates the workitem attribute ‘_budget’ for a value greater than 100:
(workitem._budget && workitem._budget[0]>100)
With Conditional Events, Imixs-BPMN offers a significant extension of the modeling possibilities for BPMN 2.0 models to be executed within the Imixs-Workflow engine. Find further details about the modelling with Imixs-BPMN here.
The post BPMN 2.0 – Conditional Events appeared first on Imixs Workflow.
