In my Low-Code Business Automation methodology, the first step is something I call *whiteboarding* – developing examples of the logic created in Excel with an eye toward generalizing the logic to handle any possible example and then translating to DMN. This is actually the hardest part of the project, and the only part requiring subject matter expertise. The rest of it is purely mechanical.

In the beta testing of my Business Automation training, some students have complained about the difficulty of doing this. In the whiteboard spreadsheets, if a cell value is not simply hard-coded, it is often a simple reference to some other cell, or maybe adding two cell values together. But why does the formula reference that particular cell? It’s much easier to answer that question in plain English than to express the generalized logic in Excel formulas. Unfortunately, Excel formulas have never been great at defining generalized table-handling logic.

This is why I was excited to hear about some new capabilities of the Excel formula language, now being rebranded as Power FX, to handle data tables, using what Microsoft is calling *dynamic arrays*. New built-in functions like FILTER and SORT now offer the chance to manipulate table data in a way that, even Microsoft now admits, was virtually impossible before. I set out to see whether using the new dynamic array functions in Excel to generalize the logic before translating to DMN would simplify my methodology. This post lays out what I found.

Here is a simplified version of the example we use in my training, in which *business events* representing stock trades are recorded in tables that manage the user’s stock portfolio. Each account in the system is initialized with $100,000 in Cash. If the user buys 100 shares of ticker X at $200/share, the portfolio immediately afterwards contains $20,000 of ticker X and $80,000 of Cash. If he next sells 50 shares of ticker X at $220/share, that returns $11,000 in Cash, for a total of $91,000, and his remaining 50 shares of X are now worth $11,000, for a total portfolio value of $102,000. If he makes no more trades and ticker X drops to $210/share, he still has $91,000 Cash and $10,500 worth of X, for a total portfolio value of $101,500. You don’t need to be a Wall Street genius to comprehend this.

In my simplified training whiteboard, there are 5 trades, including initialization. The logic maintains 3 tables: *Trade*, simply a transaction log of the trades; *Position*, which calculates the change in two account positions – the traded ticker and Cash – at the time of each trade; and *Portfolio*, which reports the current value of each ticker and Cash, based on current prices. (There is a fourth table also, *Prices*, which holds the current price of each ticker in the Portfolio.) After 5 trades, the tables look like this:

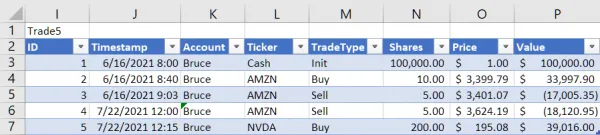

The *Trade* table is self-explanatory. After initialization, the *TradeType* is either Buy or Sell. Each trade adds one record to the table. *Shares* is always positive, but the *Value* (magnitude calculated as *Shares* * *Price*) is negative for a Sell.

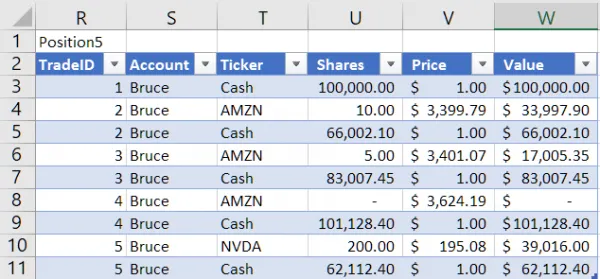

Like the *Trade* table, the *Position* table is immutable. *Two* records are appended with each trade, one for the traded ticker and one for Cash, but existing records are unchanged. *TradeID* links the *Position* record to a record in the *Trade* table. So, looking at this table, Trade 2 is a Buy of 10 shares AMZN at $3399.79/share, a *Value* at the time of the trade of $33,997.90. This amount is subtracted from the previous Cash balance, leaving $66,002.10. In the *Position* table, *Shares* means the net shares remaining *after* the trade. Trade 3 is a Sell of 5 shares AMZN at $3401.07/share, or a *Value* of -$17,005.35. So in the *Position* table, AMZN *Shares* *decreases* by 5 from the prior value of 10, leaving a net value of 5, and Cash *increases* by $17,005.35, for a net value of $83,007.45.

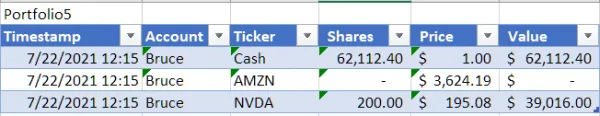

Unlike the first two tables, records in the *Portfolio* table *are updated *with each trade and with every change of the current *Price*. There is one *Portfolio* record for each ticker plus Cash. Here *Shares* and *Price* are the current net share count and price at the moment indicated by the *Timestamp*, so the sum of the *Value* column is the total portfolio value at that time.

Now the modeler’s challenge is to look at these tables and generalize the logic. If he is unlucky, the values in the subject matter expert’s whiteboard table are hard-coded. That’s not good. More often, you can cajole him into providing *formulas* referencing other cells.

So consider cell U8 in the *Position* table above, the net *Shares* of AMZN remaining after Trade4. Typically the subject matter expert’s formula would be written

=U6 - N5

where U6 is the previous *Shares* of AMZN in the *Position* table (5) and N5 is the number of *Shares* sold in Trade4 (5), leaving a net value of 0. Why subtract the shares instead of add? That’s because it is a Sell not a Buy. A Buy would add, not subtract. Now hopefully you see the problem: The Excel formula is based on the subject matter expert’s knowledge of these particular table cells. It is not generalized.

The modeler must deduce the logic from the formula above, or he may be able to get the subject matter expert to do it for him. In plain English, the generalized logic for the *Shares* column of the *Position* table would be something like this:

- If
*Ticker*is not Cash and*TradeType*is Buy,*Position.Shares*is the value of*Portfolio.Shares*of that ticker*before*the trade PLUS the value of*Trade.Shares*. - If
*Ticker*is not Cash and*TradeType*is Sell,*Position.Shares*is the value of*Portfolio.Shares*of that ticker*before*the trade MINUS the value of*Trade.Shares*. - If
*Ticker*is Cash,*Position.Shares*is*Portfolio.Shares*of Cash before the trade MINUS*Trade.Value*.

In plain English, that’s pretty straightforward. Can we generalize it in the Excel formula language using the new dynamic array functions? Yes, we can, but it’s harder than you think. The formula for cell U8, AMZN *Position*.*Shares* after Trade4, is:

=IFERROR(FILTER(Portfolio3[Shares], Portfolio3[Ticker]=Event4[Ticker]),0) +IF(Event4[TradeType]="Buy", Event4[Shares], -1*Event4[Shares])

In the expression above, *Portfolio3* refers to the *Portfolio* table *before* Trade4, and *Event4* is Trade4. The key is the new FILTER function, which selects rows of a table. To use the column names rather than cell coordinates, we first need to turn those cell ranges into Excel tables. (Just select the range, Insert table. Check Use header rows, uncheck Total row, and assign the table a name.) The syntax is:

FILTER(table, condition)

returning rows of *table* satisfying the *condition*. In the Excel formula language, *Portfolio3[Shares]* is a single column table, the *Shares* column of *Portfolio3*. The condition selects rows of the *Ticker* column of *Portfolio3* that match the trade ticker, *Event4.Ticker*. What if this is a new Buy and there are no rows of *Portfolio3* that match? This is where the Excel function IFERROR comes in. The first argument of IFERROR is the returned value if FILTER finds a match, and the second argument is the returned value if FILTER does not return a match, which we want to be 0. The second part of the expression adds or subtracts the traded shares, using the IF function, with the syntax

IF(condition, value if true, value if false)

Let’s compare this Excel formula with the corresponding FEEL:

(if Portfolio3[Ticker=Event4.Ticker]!=null then Portfolio3[Ticker=Event4.Ticker].Shares[1] else 0) + if Event4.TradeType="Buy" then Event4.Shares else -1*Event4.Shares

The syntax of filter expressions is different but overall the two are about equal in complexity, and you could argue that going from the generalized Excel formula to FEEL is easier than going from plain English directly to FEEL.

Now look at cell U9, the *Position.Shares* of Cash after Trade4. The generalized Excel formula is

=FILTER(Portfolio3[Shares], Portfolio3[Ticker]="Cash") - Event4[Value]

Here we know that *Portfolio3* always has a row for Cash, so we don’t need IFERROR. The corresponding FEEL formula is

Portfolio3[Ticker="Cash"].Shares - Event4.Value

Here I would give a slight friendliness edge to FEEL, but again going from the generalized Excel to FEEL is probably easier than going from plain English directly to FEEL.

The harder case is *Shares* in the *Portfolio* table. Here let’s look at *Portfolio5*, meaning after Trade5. In plain English, *Portfolio5.Shares* for a ticker (including Cash) is the most recent value of *Position5.Shares* for that ticker, where *Position5* is the new *Position* table after Trade5. The Excel formula is this:

=INDEX(SORT(FILTER(Position5, Position5[Ticker]=[@Ticker]),1,-1),1,4)

This is messy. Starting from the innermost expression and working outward, we filter *Position5* to extract rows matching the *Ticker* value for the current row in *Portfolio5*. That is the meaning of the cryptic [@Ticker] in the filter. Next, to get the most recent one, we sort that filtered table based on the column number (1, the second argument), in descending order (-1, the third argument). Finally, we use Index to extract row 1 of that sorted filtered list (second argument), column 4 (third argument). That’s pretty ugly. Here it is in FEEL:

Position5[item.Ticker=Ticker].Shares[-1]

In this case it’s a clear win for FEEL, and going directly from plain English to FEEL is probably easier than trying to use the Excel formula. Excel would clearly benefit from having a better way to select the last item in a list.

In the end, would it be advantageous in the training to encourage students to develop generalized Excel formulas before going to FEEL? I’m not sure. The FEEL-haters insist that Excel formulas are MUCH more business-friendly than FEEL, but I have my doubts. Another thing arguing against is the fact that Microsoft’s documentation is not great. Some Power FX functions work only in PowerApps, not in Excel, and some that work in both use different syntax. For example, how do you use the Filter function with multiple conditions? The Power FX documentation says any of the following work:

FILTER(table, condition1, condition2) FILTER(table, AND(condition1, condition2)) FILTER(table, condition1 And condition2) FILTER(table, condition1 && condition2)

In Excel, NONE of those work. What works, as shown in the Excel Formula Help, is this:

FILTER(table, (condition1) * (condition2))

I’m debating what to do about generalized Excel formulas, hoping that some reader more experienced in Excel table operations can show me a better way to handle it. If that’s you, please add your comments.
