Blog Posts Process Management

SAP Connector – AuraPortal

Blog: Auraportal Blog

AuraPortal has a wide range of mechanisms that allow integration with external systems or applications to facilitate centralized management of a company and the SAP Connector is one of those mechanisms.

SAP is one of the most popular Enterprise Resource Planning (ERP) systems used by large companies (90% of Fortune 500 companies) to execute and optimize production operations and distribution of goods or services in production.

AuraPortal has a SAP Connector that allows you to easily connect with BAPI‘s or SAP RFCs without the need for any programming (ZERO-CODE), allowing you to integrate the ERP data in AuraPortal to use or modify them, including them in company processes.

Once our SAP client is connected, this connector allows you to configure operations, which make calls to BAPIs, standard SAP functions. These operations let you map data from the AuraPortal processes to the input parameters of these BAPIs. Subsequently, these operations are launched through certain events or using AuraPortal system tasks.

Mapping data from AuraPortal Process to SAP

The AuraPortal SAP connector allows data reading and writing in the SAP system, through data mapping between the ERP and the AuraPortal processes using BAPIs.

Mapping data from SAP to AuraPortal process

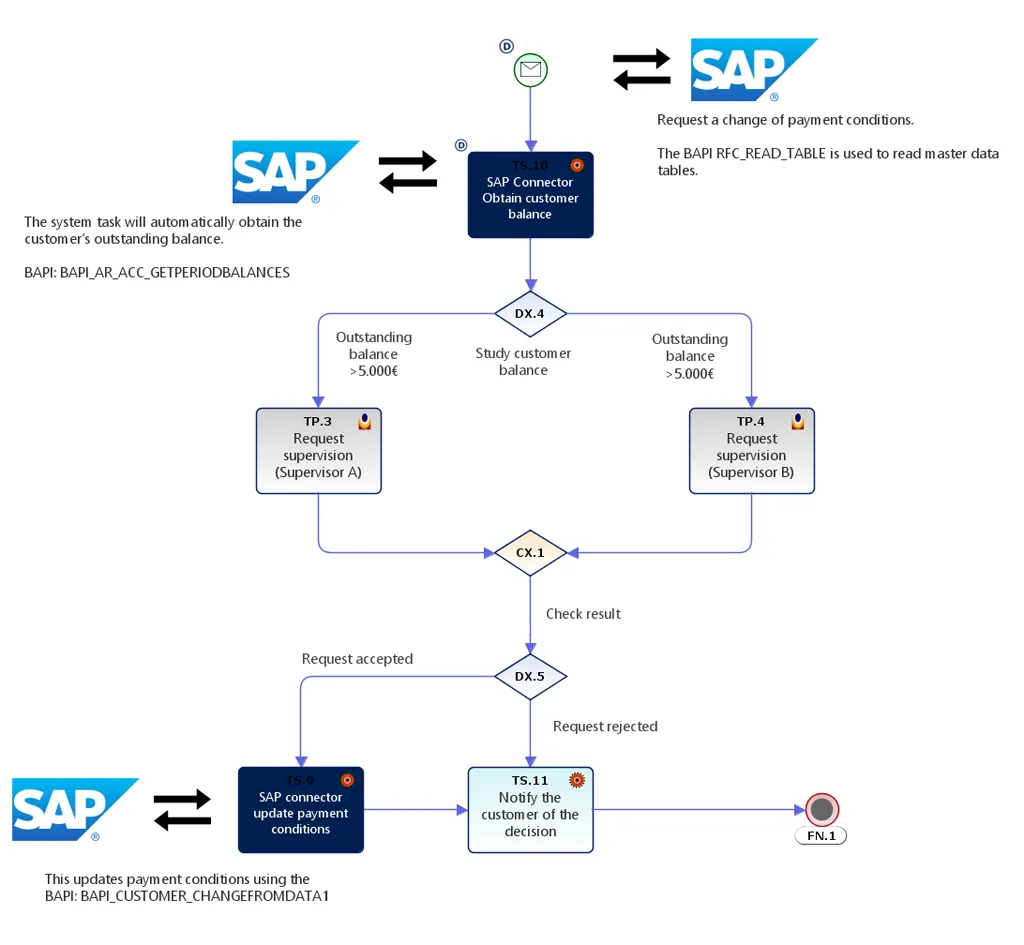

The following example shows a supervision process of a customer’s payment conditions with 3 calls to BAPIs, one from a start event and the other two through system tasks. The first two are able to obtain data from the ERP, while the third introduces data from the process to the SAP system.

AuraPortal Process with SAP Connector- BPM Integration

You can download our predefined model for free here.

The post SAP Connector – AuraPortal appeared first on AuraPortal.
