Patient Treatment - Abstract Process

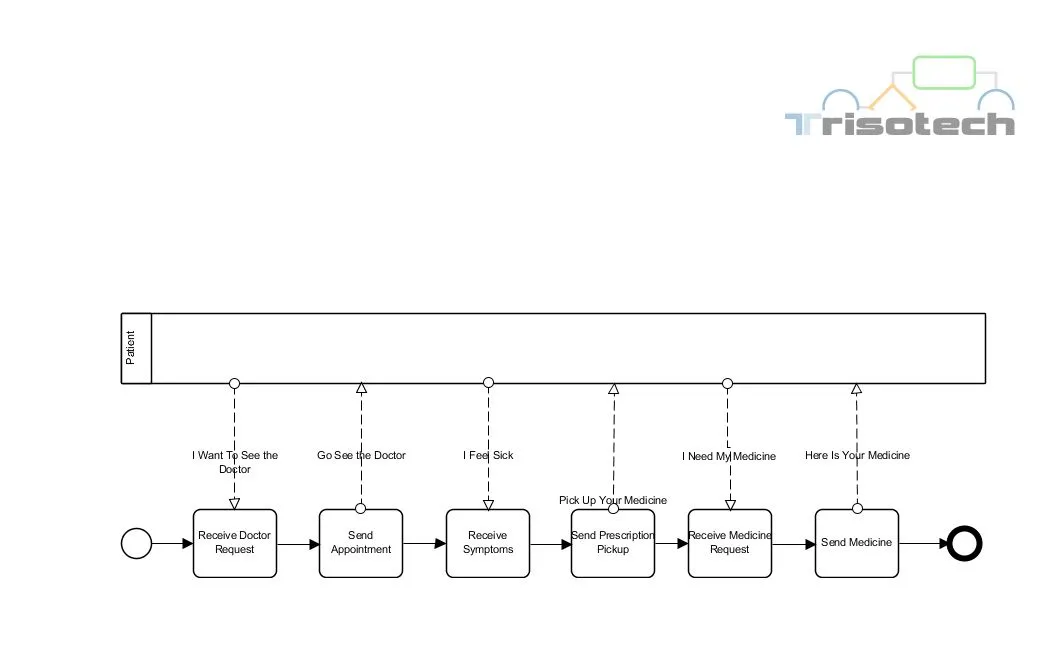

Patient Illness Treatment Process used as example in the BPMN 1.2 Specifications. This diagram presents the Doctor’s Office Abstract Process, corresponding to Figure 7.2 (page 13) of BPMN v1.2 Specifications.
