DecisionCAMP 2019: collaborative decision making and temporal reasoning in DMN

Blog: Column 2 - Sandy Kemsley

Collaborative decisions: coordinating automated and human decision-making. Alan Fish, FICO

Alan Fish presented on the coordination of decisions between automation, individuals and groups. He considered how DMN isn’t enough to model these interactions, since it doesn’t allow for modeling certain characteristics; for example, partitioning decisions over time is best done with a combination of BPMN and DMN, where temporal dependencies can be represented, while combining CMMN and DMN can represent the partitioning decisions between decision-makers.

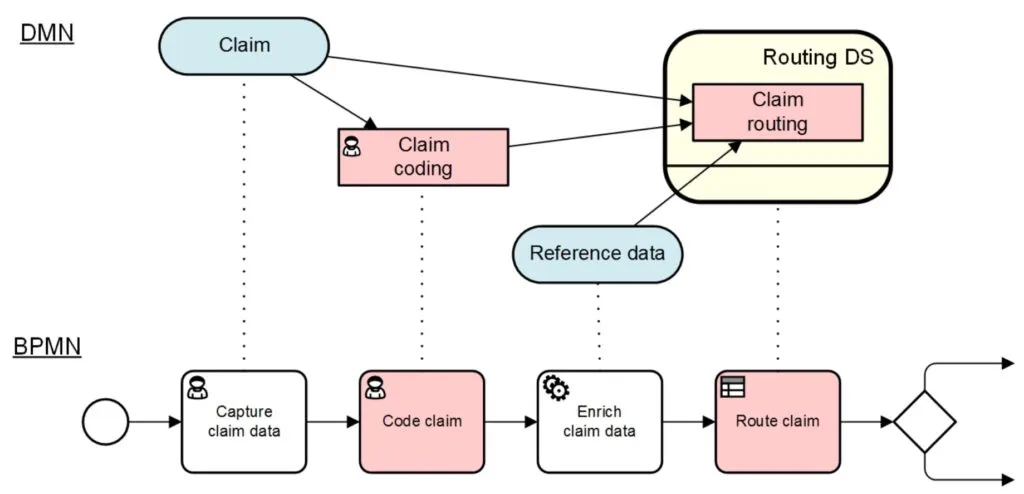

Partitioning decisions over time, modeled with BPMN and DMN. From Alan Fish’s presentation.

He also looked at how to represent the partition between decisions and meta-decisions — which is not currently covered in DMN — where meta-decisions may be an analytical human activity that then determines some of the rules around how decisions are made. He defines an organization as a network of decision-making entities passing information to each other, with the minimum requirement for success based on having models of processes, case management, decisions and data. The OMG “Triple Crown” of DMN, BPMN and CMMN figure significantly in his ideas on a certain level of organizational modeling, and the success of the organizations that embrace them as part of their overall modeling and improvement efforts.

He sees radical process reengineering as being a risky operation, and posits that doing process reengineering once then constantly updating decision models to adapt to changing conditions. An interesting discussion on organizational models and how decision management fits into larger representations of organizations. Also some good follow-on Q&A about whether to consider modeling state in decision models, or leaving that to the process and case models; and about the value of modeling human decisions along with automated ones.

Making the Right Decision at the Right Time: Introducing Temporal Reasoning to DMN. Denis Gagné, Trisotech

Denis Gagné covered the concepts of temporal reasoning in DMN, including a new proposal to the DMN RTF for adding temporal reasoning concepts. Temporal logic is “any system of rules and symbolism for representing, and reasoning about, propositions qualified in terms of time”, that is, representing events in terms of whether they happened sequentially or concurrently, or what time that a particular event occurred.

The proposal will be for an extension to FEEL — which already has some basic temporal constructs with date and time types — that provides a more comprehensive representation based on Allen’s interval algebra and Zaidi’s point-interval logic. This would have built-in functions regarding intervals and points, with two levels of abstraction for expressiveness and business friendliness, allowing for DMN to represent temporal relationships between points, between points and intervals, and between intervals.

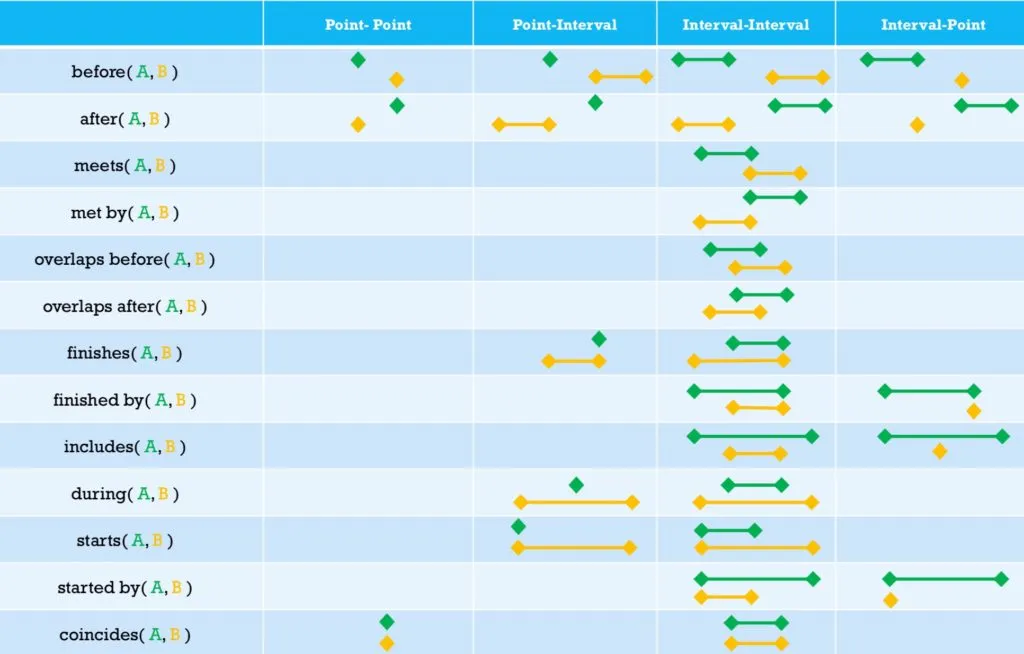

Proposed DMN syntax for temporal relationships. From Denis Gagné‘s presentation.

The proposal also includes a more “business person common sense” interpretation for interval overlaps and other constructs: note that 11 of the possible interval-interval relationships fall into this category, which makes this into a simpler before/after/overlap designation. Given all of these representations, plus more robust temporal functions, the standard can then allow expressions such as “interval X starts 3 days before interval Y” or “did this happen in September”.

This is my first time at DecisionCAMP (formerly RulesFest), and I’m totally loving it. It’s full of technology practitioners — vendors, researchers and consultants — who more interested in discussing interesting ways to improve decision management and the DMN standard rather than plugging their own products. I’m not as much of a decision management expert as I am in process management, so great learning opportunities for me.
