A workflow model earns its place when people can use it to handle real work, including the request that arrives incomplete, the reviewer who is away, and the change that invalidates an earlier approval. A neat chain of boxes can hide all three. These four tips help turn a readable workflow chart into a model that a team can explain, test, and maintain.

An effective workflow model describes how work moves from a defined trigger to a verifiable outcome. It identifies the tasks, responsible roles, handoffs, decision rules, required information, and exception paths. A workflow chart makes those relationships visible; supporting specifications supply details that would overwhelm the diagram. Before automation, validate the model with realistic scenarios and confirm that its data, permissions, timing, and system behavior can be implemented.

By Pavel, CMW Lab blog author. Last reviewed: September 17, 2026.

Key takeaways

• A useful workflow model has a clear starting event and observable completion criteria.
• Every handoff needs a receiving role, required information, and an acceptance condition.
• Parallel work needs explicit dependencies, completion rules, and a plan for changes.
• Deadlines need a clock definition and an escalation action; a time label alone is insufficient.
• A model becomes ready for implementation when its important paths have expected test outcomes.

What makes a workflow model useful?

A useful model lets two people independently explain what happens next and reach the same answer. They should agree on who acts, which information is used, how a decision is made, and what proves that the work is complete. If the explanation relies on “someone usually sorts that out,” the model has an unresolved dependency.

Keep three things together: the diagram, a short specification of its tasks and rules, and the scenarios used to validate it. The diagram shows the route. The specification defines details such as allowed values and permissions. The scenarios demonstrate the intended behavior. Use a shared version identifier so the three do not drift apart.

This guide focuses on modeling quality. For visual conventions and page layout, see how to draw a readable workflow diagram. For the broader discovery exercise, start with mapping the process as it actually works.

Tip 1: Define the process boundary before adding detail

State the trigger, the outcome, and what is outside the model. “Manage content” is too broad to test. “Take a submitted article through review to verified publication or cancellation” gives the team a start, alternative endings, and a manageable scope.

Brainstorm with people who perform the work and ask what happens next at each step. Include awkward workarounds, missing information, queues, and informal approvals. Record the current process separately from the proposed one. Otherwise, a diagram can combine an existing manual workaround with a future automated step and describe a process that has never existed.

Challenge each activity after discovery: what outcome does it produce, who uses that outcome, and what would fail if the activity disappeared? A duplicate check may be waste, or it may be an independent control. Understand its purpose before removing it.

Use one level of detail on a diagram. “Complete editorial review” can be a task in an overview and a linked subprocess in a detailed model. Mouse clicks and screen fields normally belong in work instructions unless they change routing, accountability, or the evidence required to continue.

APQC’s Process Classification Framework organizes business processes into a hierarchy. It can help teams align process names and scope. The local sequence, handoffs, and exception rules still need to be discovered and defined for the organization.

Tip 2: Make roles, handoffs, and ownership explicit

Assign a responsible role to every task and define how a person receives that assignment. A lane labeled “Marketing” communicates a department, but it does not tell an implementation team whether work goes to a queue, a named owner, or a person selected from the request.

Describe each important handoff as a small contract: the sender, receiving role, information transferred, acceptance condition, and response when the handoff fails. For content review, “Send to reviewer” becomes “Assign the current asset version to the editorial reviewer with the brief, intended audience, and due time.”

Keep the process owner distinct from task performers. The process owner resolves gaps that cross departments and maintains the overall design. A performer completes a particular piece of work. A backup assignment rule handles absence; it should not depend on everyone knowing whom to message.

Rehearse an absence scenario. If the intended reviewer cannot receive work, does the request enter a monitored queue, move to a designated backup, or stop with an explicit exception? A task that exists but has no eligible recipient is still a failed handoff.

Tip 3: Model decisions, parallel work, and exception paths

Label decisions with conditions that the team can evaluate. “Looks good?” may be enough during brainstorming, but implementation needs permitted outcomes, required fields, and a route for missing or unexpected values. Keep the task that records a decision separate from the branch that uses it.

Model rejection, rework, cancellation, timeout, and failure when they change who acts next or whether work can continue. Smaller calculations can live in a linked rule specification. The diagram should reveal consequential behavior without becoming a wall of formulas.

Make parallel work conditional on real independence

Some activities can run concurrently because neither needs the other’s output. Planning a trade-show promotion and booking travel may overlap once the event is confirmed. The original article’s advice to look for parallel work remains useful, but concurrency also requires a clear point at which downstream work may begin.

For two required reviews, specify that both must approve the same version. If a writer revises the asset after one review, that earlier approval may no longer apply. Decide which checks must be repeated and what happens to review tasks still open on the old version.

In Business Process Model and Notation (BPMN), branching and synchronization have defined meanings. A parallel join waits for its required incoming flows; it cannot complete if it expects a mutually exclusive branch that never started. Use the BPMN element reference when translating the design into formal notation.

Give every exception a destination

An arrow labeled “Escalate” needs an owner and a recovery outcome. A reminder may leave the original task open; reassignment or cancellation may change who can act. Define which behavior is intended. A retry also needs a limit or a route to investigation, especially when the external action may already have succeeded.

Tip 4: Add data, timing, rules, and system events

Document the operational details that make the route work. For each task, identify required inputs, outputs, editable fields, access rules, and the event that allows the next step to start. Avoid making one status field stand for several unrelated facts such as approval, delivery, and payment.

For a service-level agreement (SLA) or internal target, define when the clock starts, whether it uses elapsed or business time, which calendar applies, and whether it pauses during rework. Then define what a breach causes. The phrase “two days” leaves all of those questions unanswered.

Give incoming requests a stable identifier. If the same submission or system event arrives twice, specify how the implementation recognizes it and avoids starting duplicate work. Also define how an external response is matched to the correct request and version.

Separate “command sent” from “outcome confirmed.” A publication request sent to a content system is not proof that the intended version is publicly available. The completion criteria should include the relevant evidence: a successful response, the resulting URL, and a check that the output matches the approved version.

For changing routing logic, keep a clear rule owner and version. The comparison of workflow and rules engines explains how task coordination differs from evaluating decision logic.

12-point workflow model review checklist

Use this original checklist to review one model version. Mark each row pass, unresolved, or not applicable, and link to the supporting evidence. An unresolved condition that affects authorization, routing, or completion should be addressed before the corresponding automation is released.

Method: the checklist combines process-discovery, responsibility, execution, and verification questions. It is an editorial review aid, not a certification scheme or a statistically validated maturity score. Twelve checked boxes do not replace testing in the chosen system.

Before and after: a content publication workflow

Illustrative example: a team publishes a marketing asset after editorial and brand review. The process, roles, two-business-day review target, and version rules below are assumptions created for this guide. They are not a customer case or a measured performance claim.

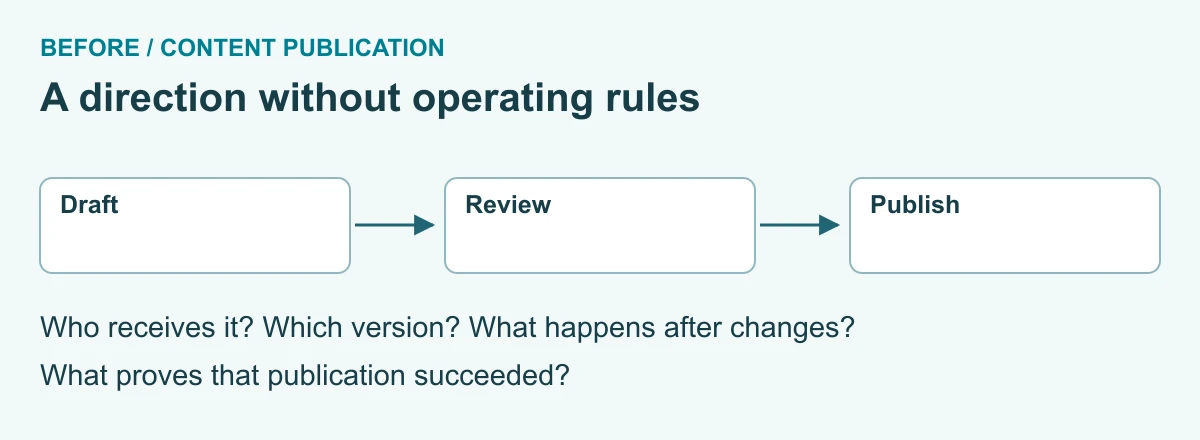

The initial chart says “Draft → Review → Publish.” It does not identify who coordinates the reviews, whether both are required, what happens after a revision, or whether “Publish” means an attempt or a confirmed result. Different team members can follow the same chart and produce different outcomes.

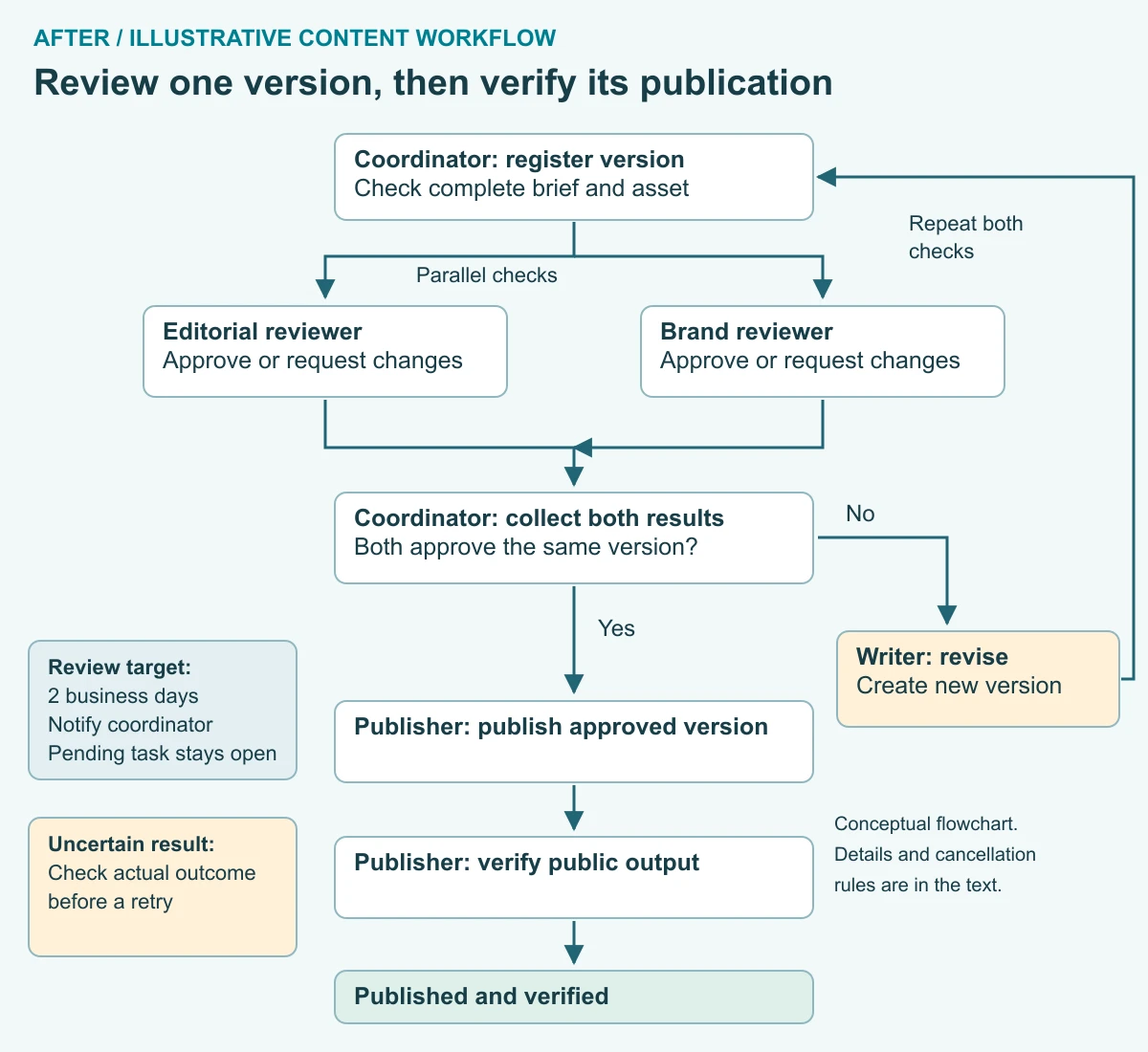

The revised model adds these rules:

1. Intake: the writer submits an asset with its brief and version identifier. The coordinator checks completeness before assigning reviews.
2. Review: editorial and brand reviewers work independently on that same version. Each records approved or changes requested. A monitored backup rule covers unavailable reviewers.
3. Rework: the coordinator collects both review outcomes. If either requests changes, the writer creates a new version and both checks repeat. This deliberately trades some extra review work for a simple, auditable version rule.
4. Publication: the publisher releases only the version that has both approvals, then verifies its public output. An uncertain or failed result stays unresolved until the publisher checks what happened.
5. Timing: review time begins when both tasks are assigned and follows the team’s working calendar. At two business days, the coordinator receives an escalation; the pending review remains open. An unavailable reviewer follows the backup rule.

The diagram groups some detail into labeled activities to stay readable. Intake corrections, reminders, and publication recovery are specified in the text and implementation requirements. The team must also define cancellation and the retry policy before building the automation. The drawing is a testable design example, not an executable file.

Validate the version rule with concrete scenarios

Walk through these cases with the writer, coordinator, reviewers, and publisher. Record the model version and the expected result before configuring the workflow.

• Both approve version A: version A can enter publication.
• One requests changes: publication remains blocked; version B starts a new review cycle.
• An old approval arrives for version A after B exists: it cannot authorize publication of B.
• One reviewer misses the target: the coordinator handles the escalation; the missing approval is not assumed.
• The publication call times out: check whether publication occurred before retrying, to avoid duplicate output.
• The request is canceled: outstanding tasks close according to the agreed cancellation rule, and nothing is published.

Measure whether the revised process works

Measure review cycle time from review assignment to the final required outcome for one asset version. Track first-pass approval rate as initial versions approved by both reviewers without rework / initial versions with both review outcomes × 100. Keep versions still awaiting a result visible as open work.

For an illustrative cohort of 20 initial versions with completed reviews, 15 approved without rework gives 15 / 20 × 100 = 75%. This is a sample calculation, not a CMW Lab customer result. Compare equivalent cohorts before and after a change and monitor publication errors alongside speed.

Common modeling mistakes and how to fix them

From workflow model to executable automation

Choose notation according to the behavior you need to communicate. A simple flowchart can support an early workshop. OMG BPMN 2.0.2 provides formal process semantics when events, participants, branches, and synchronization must be explicit. A valid notation choice does not fill in missing business rules.

Translate the agreed model into the target system’s supported constructs. Configure the data model, forms, assignments, access rights, conditions, deadlines, and integrations. Then run the scenarios and inspect task state, stored results, and external output. Importing or saving a diagram is only one part of that work.

The current CMW Lab site presents CMW Tracker workflow management software with graphical workflow design, configurable forms, transition and validation rules, and time- or condition-based notifications. For BPMN modeling in the platform, the process-diagram documentation describes editing and publication. Confirm the intended product and version when moving from design to implementation.

First-party lesson: connect routing to the information it needs

The historical Hertz case published by CMW Lab describes capital expenditure requests, documents, and status information spread across spreadsheets and email. The change combined request data and collaboration in a workflow application, with approval routing based on the purpose and amount of the requested budget.

The case PDF, carrying a 2022 copyright notice, reports better visibility and faster CapEx processes, but supplies no comparable before-and-after cycle-time figures. It supports a qualitative lesson: routing design depends on consistent request data and access to the relevant context. It does not establish a percentage improvement or the customer’s current operating state.

For the next modeling session, bring one current workflow, the 12-point checklist, and a few failed or delayed cases. Use them to identify the missing decisions before evaluating automation. A useful demonstration should show the normal path, a changed input, an unavailable assignee, and a failed system action against the team’s expected outcomes.

How this guide was built: the four original themes of discovery, challenging assumptions, parallel work, and responsibility were retained and made testable. The checklist and content example are original explanatory material. Product statements were checked against current public pages and documentation; the historical case is identified separately.

Frequently asked questions

How detailed should a workflow model be?

A workflow model should contain enough detail to explain the decisions and handoffs required for its purpose. An overview can group internal tasks, while an implementation model needs explicit routing, inputs, assignments, and exceptions. Move interface instructions into supporting documentation unless they change process behavior. Use linked subprocesses when one diagram becomes difficult to review.

What information must every workflow model include?

Every useful workflow model needs a trigger, an outcome, activities, responsibility, and the conditions connecting them. Add the inputs, handoff requirements, and exception behavior needed to explain the actual process. For automation, also specify permissions, timing, system interactions, and verification evidence. Keep those details linked to the same model version.

When should a simple flowchart be replaced with BPMN?

Consider BPMN when informal symbols no longer communicate the process behavior precisely enough. Typical triggers include parallel synchronization, participant messages, boundary events, or complex exception handling. A small sequence may remain clearer as a simple flowchart. If execution is planned, verify the chosen engine’s supported BPMN constructs and configuration requirements.

How do you validate a workflow model with process participants?

Validate the model by walking through realistic cases with people who perform and receive the work. Include normal completion, rework, missing inputs, absence, cancellation, and system failure. For each case, ask who acts next, which data is available, and what proves completion. Record disagreements as specific design questions and retest after resolving them.

What makes a workflow model ready for automation?

A workflow model is ready for implementation when its scope, roles, inputs, rules, timing, and important exceptions are defined well enough to configure and test. Readiness for production comes later: the configured workflow must demonstrate the expected behavior in the target environment. A clear chart and a successful save do not establish that result.
